DB-S-550 Automatic Box Facial Tissue Shrink Wrapping Machine

DB-S-550 Automatic Box Facial Tissue Shrink Wrapping Machine

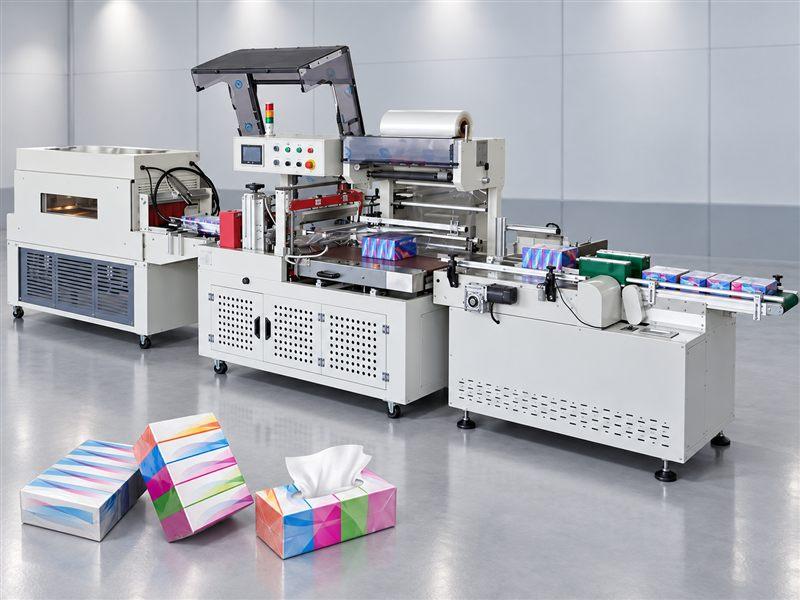

The DB-S-550 Automatic Box Facial Tissue Shrink Wrapping Machine is designed for automatic shrink wrapping of box facial tissue, box products, and daily goods. It supports POF half-folded film, with packing height up to 200 mm, packing width up to 430 mm, and W+H up to 550 mm. The matched shrink tunnel helps achieve stable shrink packaging results.

Key Features

• Suitable for box facial tissue, box products, and daily goods.

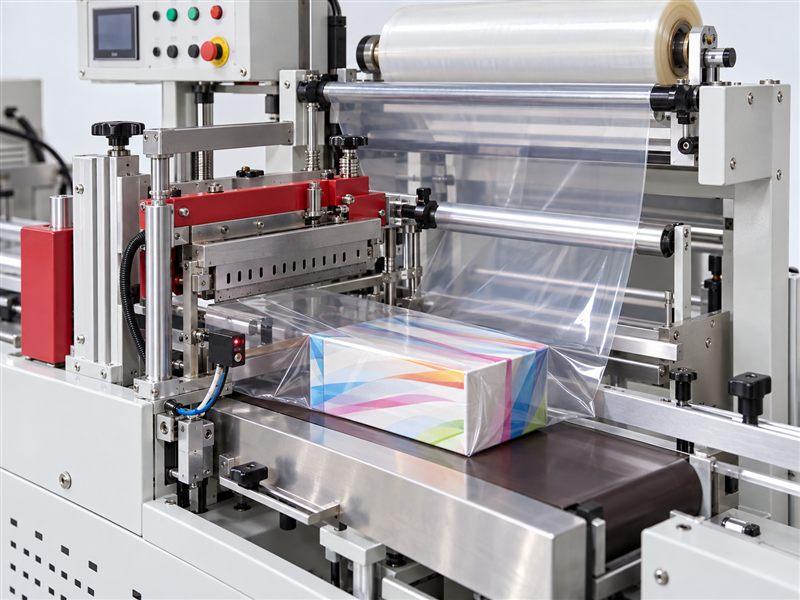

• Side seal type structure for automatic shrink wrapping.
• Constant-temperature sealing and cutting for firm sealing lines.
• Supports POF and other standard industrial shrink films.
• Product length is not limited by the longitudinal sealing knife.
• Photoelectric detection and timer control help control film feeding length.
• Separate motor controls waste film winding for easy waste removal.
• Automatic blowing, front powered infeed conveyor, and rear storage table can be selected if required.

Optional Configuration

• Product size and shrink pack style can be confirmed if required.
• POF film width and roll outer diameter can be confirmed if required.
• Automatic blowing function can be added if required.
• Front powered infeed conveyor can be selected if required.
• Rear non-powered storage table can be selected if required.

Selection Guide

Before quotation, please provide the following information:

• Product type and product size.
• Film type, width, thickness, and roll size.
• Required shrink pack style and shrink effect. Required speed and product length range.
• Factory layout, voltage, air pressure, and optional devices.

Buyer Questions & Practical Experience

To ensure the DB-S-550 matches your production line, consider the following points before inquiry:

• Product dimensions: Confirm the exact box length, width, and height. The machine handles a package width up to 430 mm and a W+H up to 550 mm, so verify your largest box fits within these limits.
• Film selection: POF half-folded film is standard. Confirm the film width and roll outer diameter (max 700 mm × 280 mm) to avoid feeding issues. Film thickness affects shrink quality and sealing temperature.
• Line integration: Plan the infeed and outfeed layout. The front powered infeed conveyor and rear storage table are optional; decide based on your existing conveyor height (platform 780–850 mm) and available floor space.
• Utility requirements: The machine requires 380 V / 50–60 Hz / 3-phase power and 0.5 MPa compressed air. Verify your factory supply before installation.
• Speed expectation: Packing speed depends on product length. Provide your target output and product dimensions so the configuration can be confirmed for your line.

For a fast factory response, contact us by WhatsApp or submit the inquiry form with your product size, film details, target output, and factory layout. You can also review the Tissue Paper Packing Machine Catalog or compare with the Automatic Shrink Packing Machine series to confirm the best fit for your line.
