Pocket Tissue Production Solution

Optional Case Packing

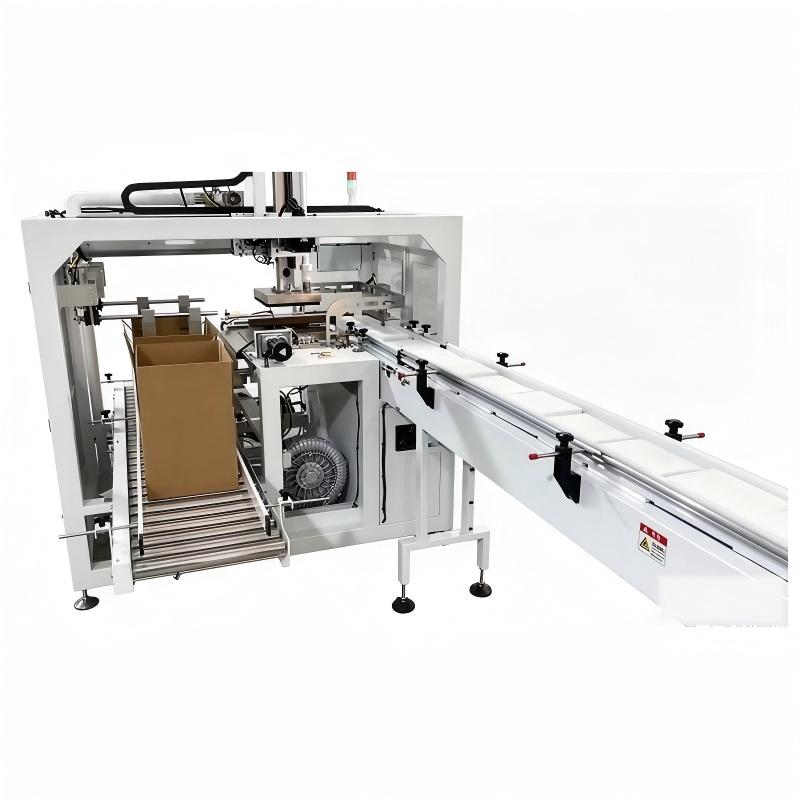

• DB-C-12P Vertical Tissue Case Packing Machine for an automated downstream configuration
• DB-C-8P Semi-Automatic Tissue Case Packing Machine for a lower-investment packing arrangement
•


Final compatibility should be confirmed according to bundle dimensions, case layout, conveying direction and line speed.

Configuration Decisions

Before engineering review, confirm the following parameters:

Layout & Integration

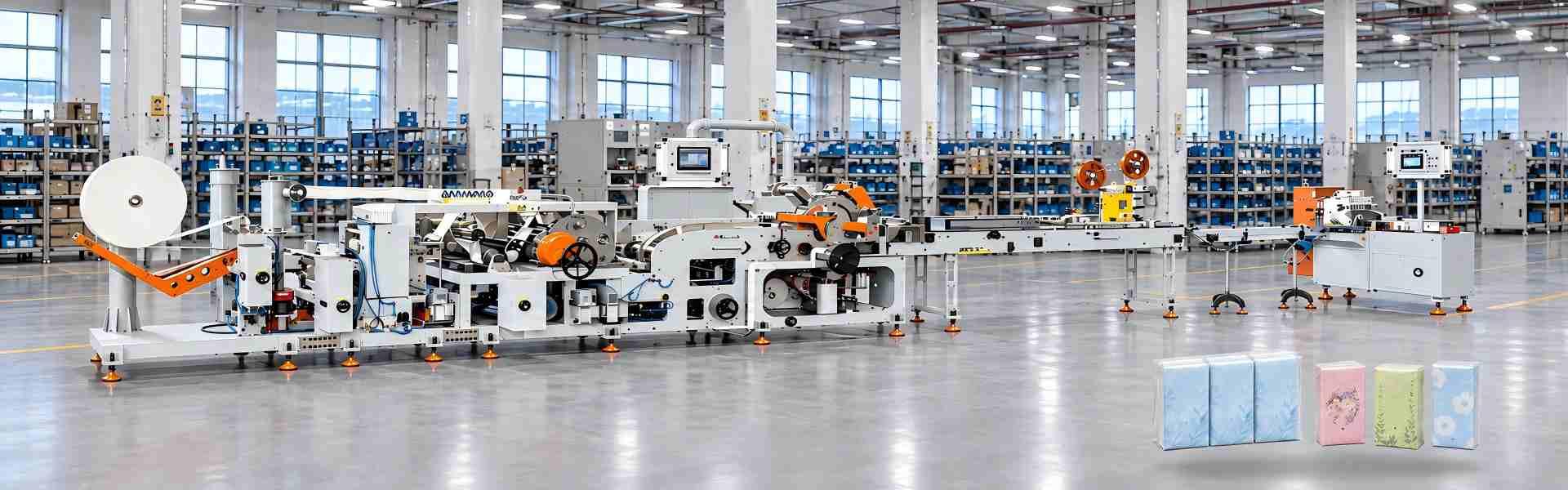

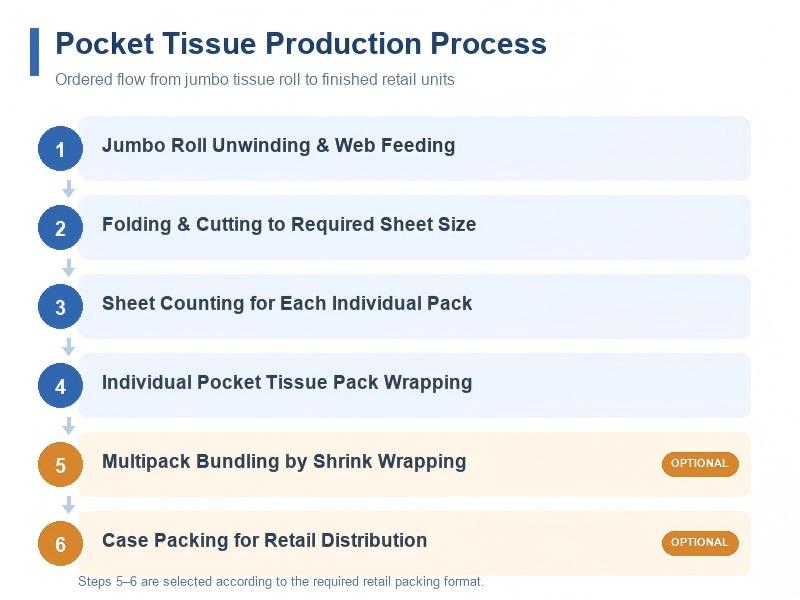

The line connects three main machines with customized transfer sections: the pocket tissue production and individual wrapping unit, the collating and conveying section for pack arrangement, and the multipack shrink wrapping unit. Counting and conveying sections then prepare multipacks for case loading. Factory floor space, conveying direction, and access for maintenance should be reviewed during layout planning.

Quality & Acceptance Checks

Before full production, verify the following through sample runs:

• Fold accuracy and sheet count consistency per pack
• Individual wrap integrity and seal quality
• Multipack bundle stability and shrink film coverage
• Case packing count accuracy and case closure quality
• Line speed matching between converting, bundling and case packing stages

Project Input Checklist

Prepare the following information for a configuration review:

• Finished pocket tissue size, ply and sheets per pack
• Parent roll width, diameter and core size
• Target output in packs per minute
• Individual pack dimensions and wrapping film specification
• Multipack bundle count and shrink film requirements
• Case dimensions, packs per case and case material
• Factory floor plan and available space
• Electrical supply standard and utility availability
