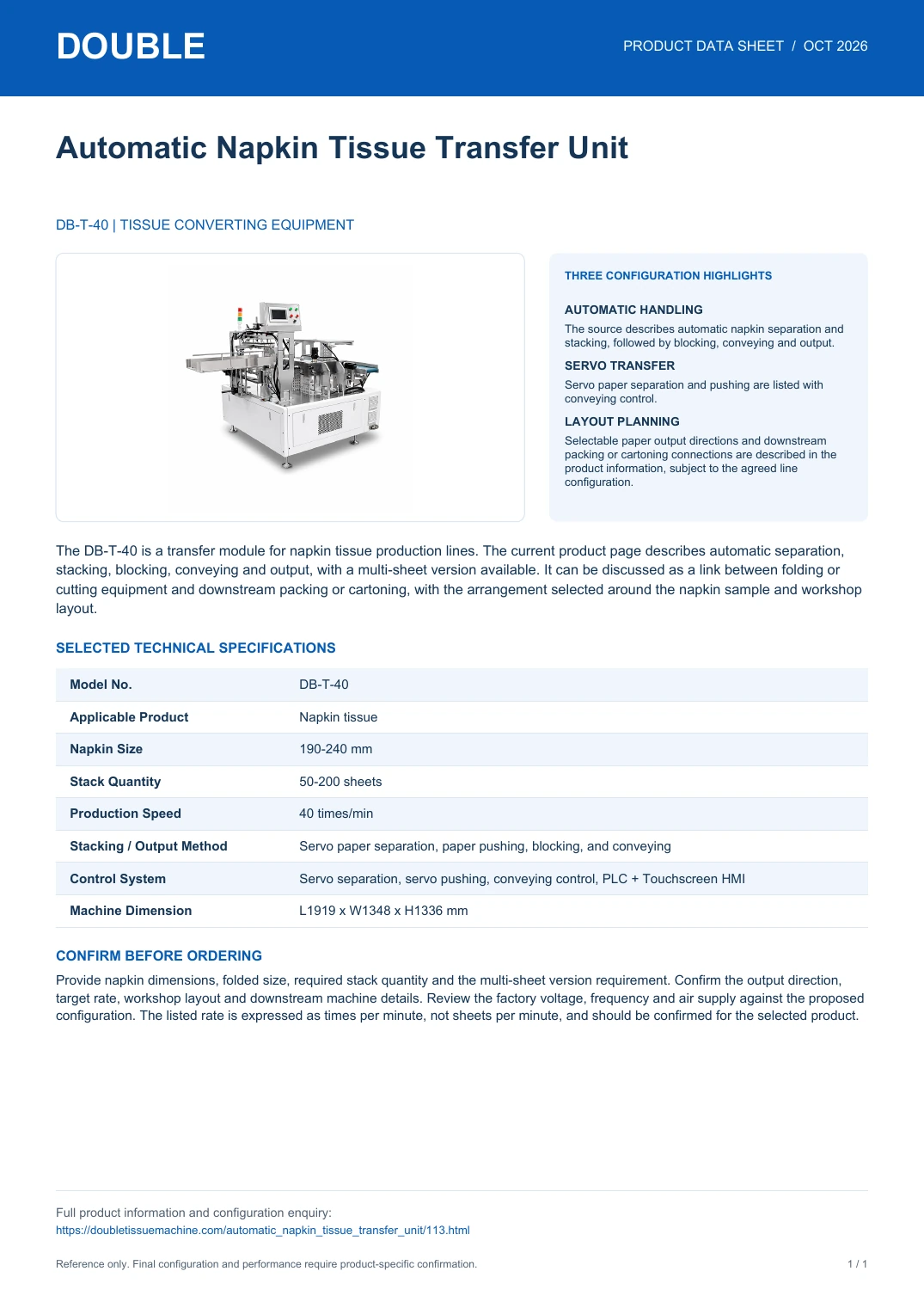

DB-T-40 Napkin Tissue Transfer Unit - PDF Data Sheet

The DB-T-40 is a transfer module for napkin tissue production lines. The current product page describes automatic separation, stacking, blocking, conveying and output, with a multi-sheet version available. It can be discussed as a link between folding or cutting equipment and downstream packing or cartoning, with the arrangement selected around the napkin sample and workshop layout.

What the data sheet covers

• Automatic handling: The source describes automatic napkin separation and stacking, followed by blocking, conveying and output.
• Servo transfer: Servo paper separation and pushing are listed with conveying control.
• Layout planning: Selectable paper output directions and downstream packing or cartoning connections are described in the product information, subject to the agreed line configuration..

Key source specifications

• Applicable Product: Napkin tissue
• Napkin Size: 190-240 mm
• Stack Quantity: 50-200 sheets
• Production Speed: 40 times/min

Confirm your configuration

Provide napkin dimensions, folded size, required stack quantity and the multi-sheet version requirement. Confirm the output direction, target rate, workshop layout and downstream machine details. Review the factory voltage, frequency and air supply against the proposed configuration. The listed rate is expressed as times per minute, not sheets per minute, and should be confirmed for the selected product.

View the original DB-T-40 product page for the complete current information.
