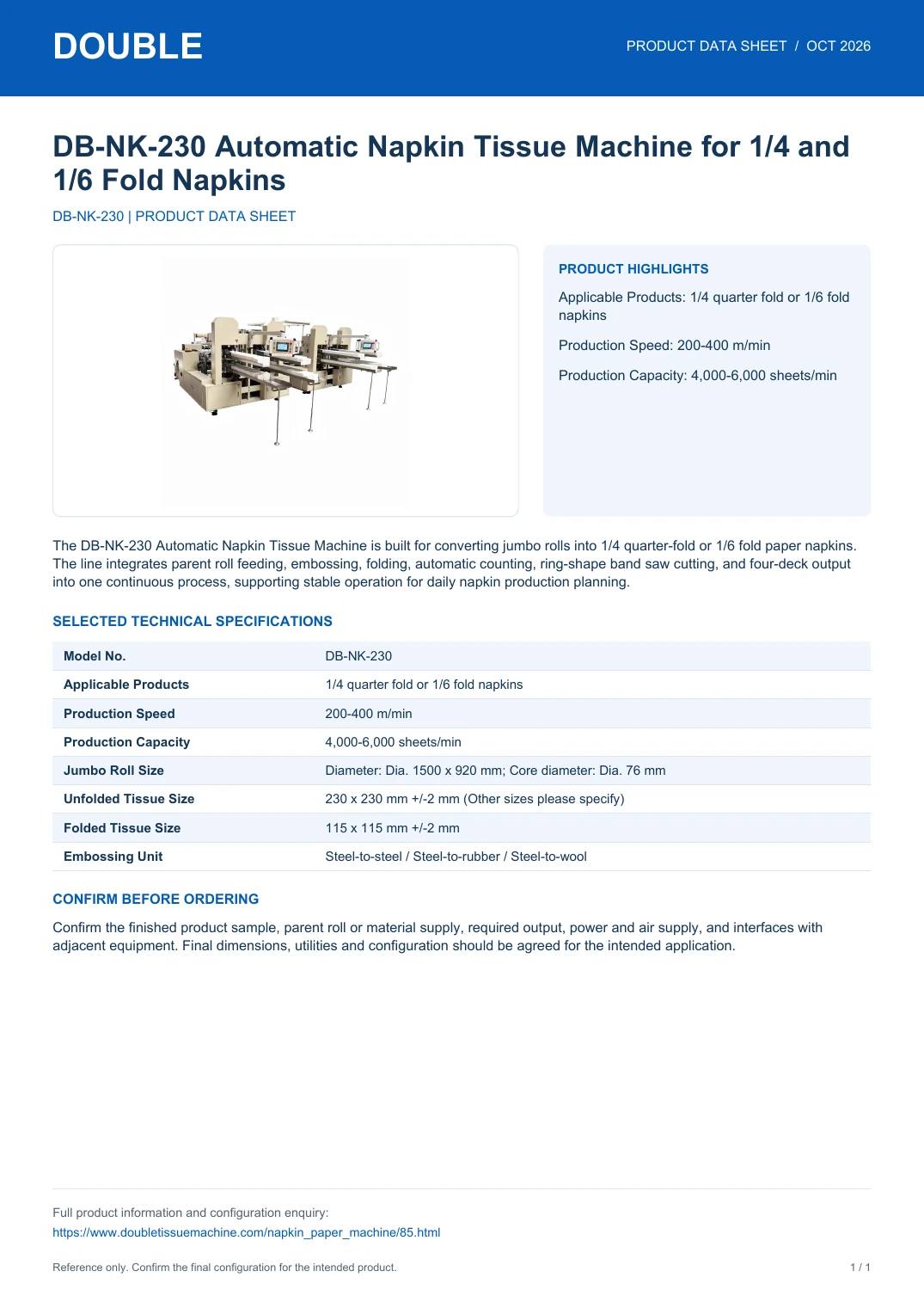

DB-NK-230 Automatic Napkin Tissue Machine for 1/4 and 1/6 Fold Napkins - PDF Data Sheet

The DB-NK-230 Automatic Napkin Tissue Machine is built for converting jumbo rolls into 1/4 quarter-fold or 1/6 fold paper napkins. The line integrates parent roll feeding, embossing, folding, automatic counting, ring-shape band saw cutting, and four-deck output into one continuous process, supporting stable operation for daily napkin production planning.

Product highlights

  • Applicable Products: 1/4 quarter fold or 1/6 fold napkins
  • Production Speed: 200-400 m/min
  • Production Capacity: 4,000-6,000 sheets/min

Selected technical specifications

Model No.DB-NK-230
Applicable Products1/4 quarter fold or 1/6 fold napkins
Production Speed200-400 m/min
Production Capacity4,000-6,000 sheets/min
Jumbo Roll SizeDiameter: Dia. 1500 x 920 mm; Core diameter: Dia. 76 mm
Unfolded Tissue Size230 x 230 mm +/-2 mm (Other sizes please specify)
Folded Tissue Size115 x 115 mm +/-2 mm
Embossing UnitSteel-to-steel / Steel-to-rubber / Steel-to-wool

Confirm your configuration

Confirm the finished product sample, parent roll or material supply, required output, power and air supply, and interfaces with adjacent equipment. Final dimensions, utilities and configuration should be agreed for the intended application.

View the original DB-NK-230 product page for complete current information.
