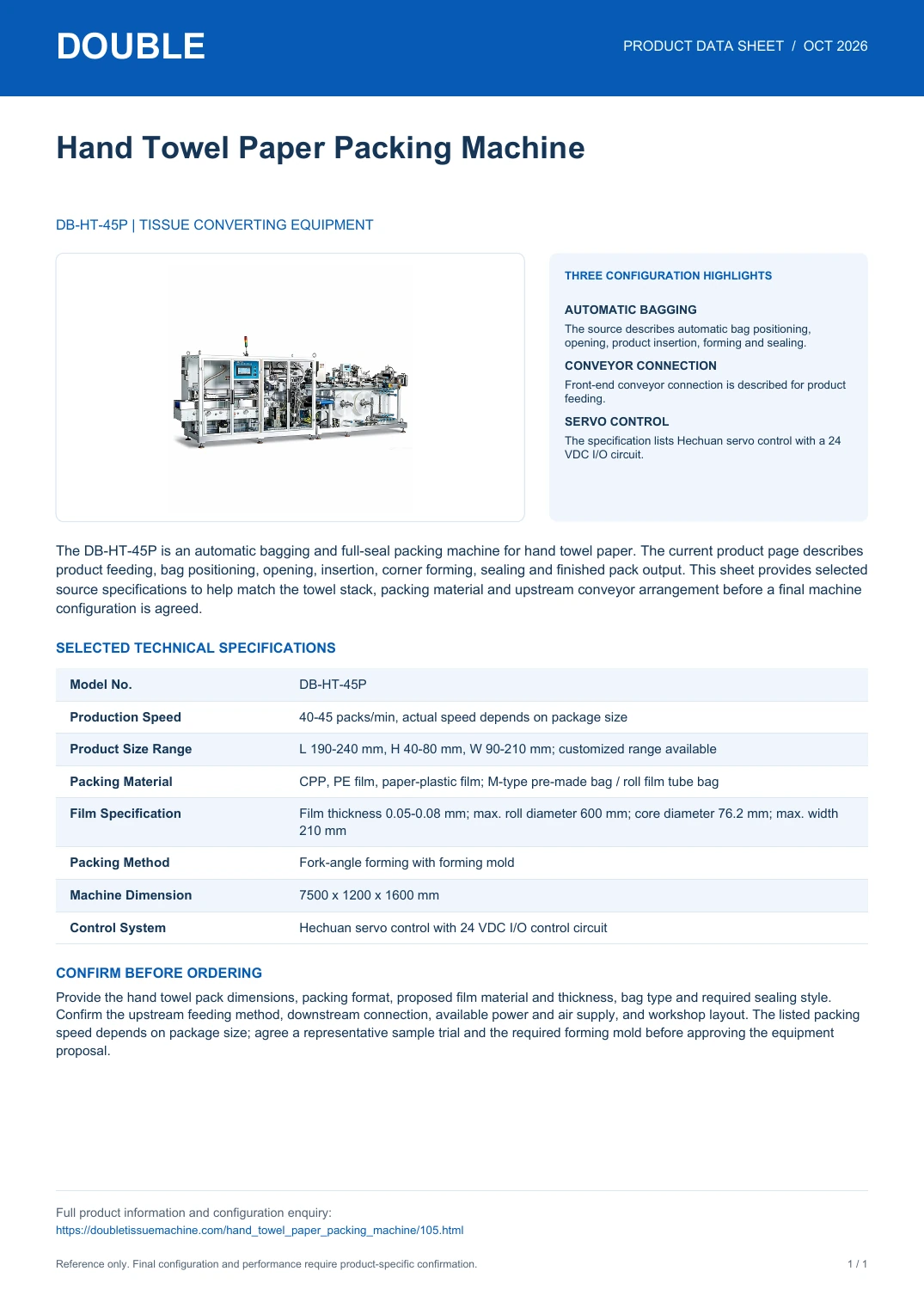

DB-HT-45P Hand Towel Packing Machine - PDF Data Sheet

The DB-HT-45P is an automatic bagging and full-seal packing machine for hand towel paper. The current product page describes product feeding, bag positioning, opening, insertion, corner forming, sealing and finished pack output. This sheet provides selected source specifications to help match the towel stack, packing material and upstream conveyor arrangement before a final machine configuration is agreed.

What the data sheet covers

• Automatic bagging: The source describes automatic bag positioning, opening, product insertion, forming and sealing.
• Conveyor connection: Front-end conveyor connection is described for product feeding.
• Servo control: The specification lists Hechuan servo control with a 24 VDC I/O circuit.

Key source specifications

• Production Speed: 40-45 packs/min, actual speed depends on package size
• Product Size Range: L 190-240 mm, H 40-80 mm, W 90-210 mm; customized range available
• Packing Material: CPP, PE film, paper-plastic film; M-type pre-made bag / roll film tube bag
• Film Specification: Film thickness 0.05-0.08 mm; max. roll diameter 600 mm; core diameter 76.2 mm; max. width 210 mm

Confirm your configuration

Provide the hand towel pack dimensions, packing format, proposed film material and thickness, bag type and required sealing style. Confirm the upstream feeding method, downstream connection, available power and air supply, and workshop layout. The listed packing speed depends on package size; agree a representative sample trial and the required forming mold before approving the equipment proposal.

View the original DB-HT-45P product page for the complete current information.
