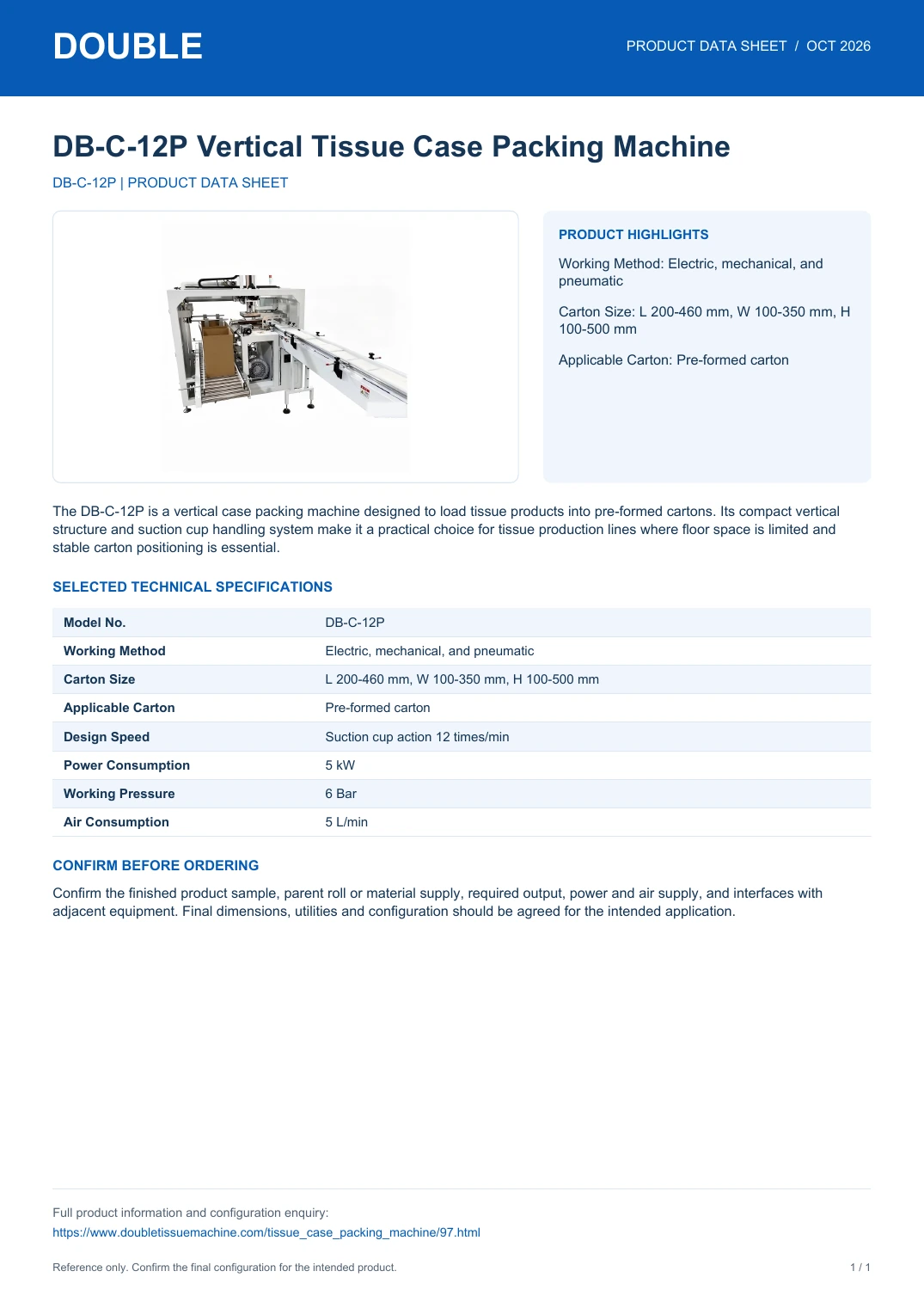

DB-C-12P Vertical Tissue Case Packing Machine - PDF Data Sheet

The DB-C-12P is a vertical case packing machine designed to load tissue products into pre-formed cartons. Its compact vertical structure and suction cup handling system make it a practical choice for tissue production lines where floor space is limited and stable carton positioning is essential.

Product highlights

  • Working Method: Electric, mechanical, and pneumatic
  • Carton Size: L 200-460 mm, W 100-350 mm, H 100-500 mm
  • Applicable Carton: Pre-formed carton

Selected technical specifications

Model No.DB-C-12P
Working MethodElectric, mechanical, and pneumatic
Carton SizeL 200-460 mm, W 100-350 mm, H 100-500 mm
Applicable CartonPre-formed carton
Design SpeedSuction cup action 12 times/min
Power Consumption5 kW
Working Pressure6 Bar
Air Consumption5 L/min

Confirm your configuration

Confirm the finished product sample, parent roll or material supply, required output, power and air supply, and interfaces with adjacent equipment. Final dimensions, utilities and configuration should be agreed for the intended application.

View the original DB-C-12P product page for complete current information.
