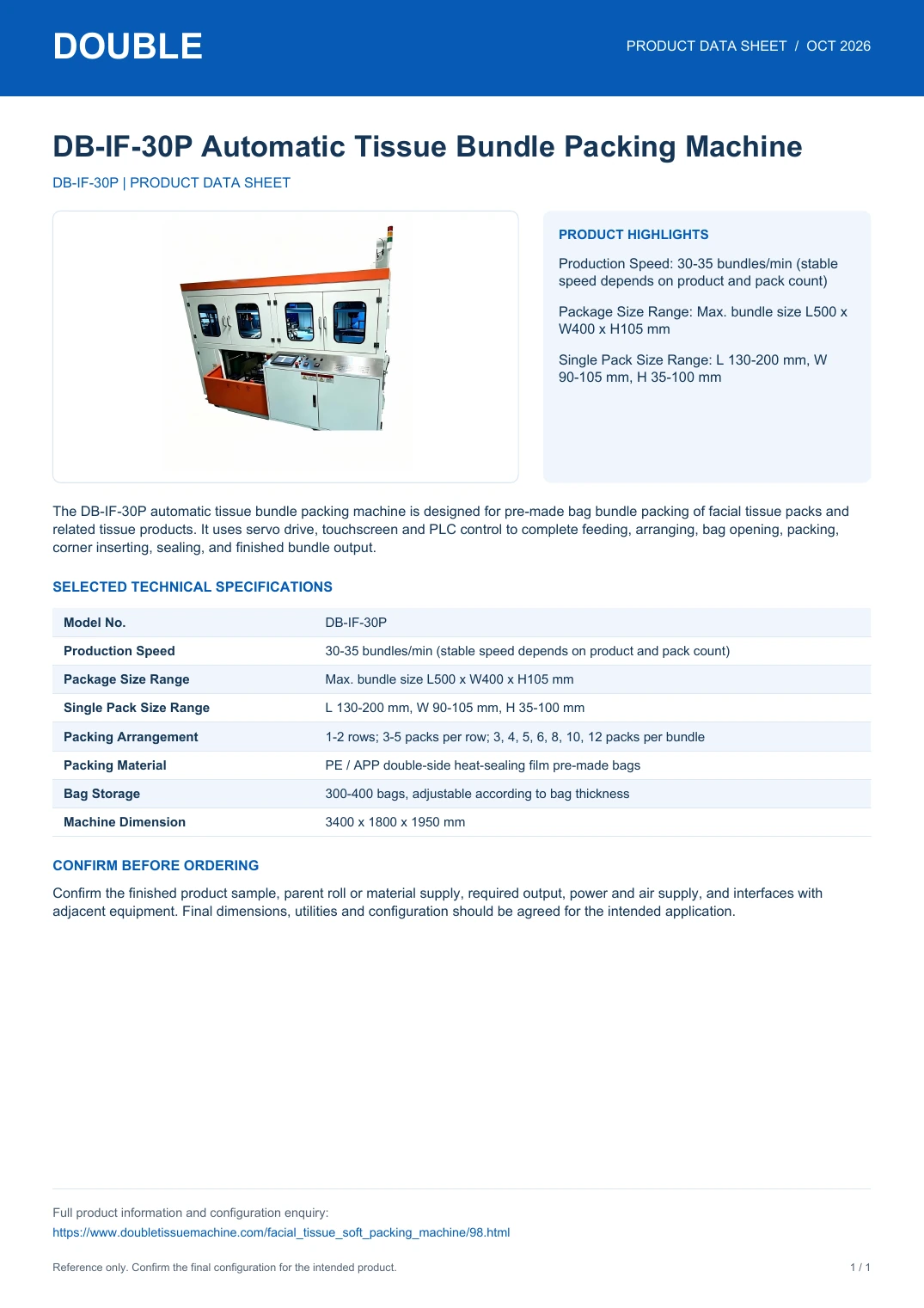

DB-IF-30P Automatic Tissue Bundle Packing Machine - PDF Data Sheet

The DB-IF-30P automatic tissue bundle packing machine is designed for pre-made bag bundle packing of facial tissue packs and related tissue products. It uses servo drive, touchscreen and PLC control to complete feeding, arranging, bag opening, packing, corner inserting, sealing, and finished bundle output.

Product highlights

  • Production Speed: 30-35 bundles/min (stable speed depends on product and pack count)
  • Package Size Range: Max. bundle size L500 x W400 x H105 mm
  • Single Pack Size Range: L 130-200 mm, W 90-105 mm, H 35-100 mm

Selected technical specifications

Model No.DB-IF-30P
Production Speed30-35 bundles/min (stable speed depends on product and pack count)
Package Size RangeMax. bundle size L500 x W400 x H105 mm
Single Pack Size RangeL 130-200 mm, W 90-105 mm, H 35-100 mm
Packing Arrangement1-2 rows; 3-5 packs per row; 3, 4, 5, 6, 8, 10, 12 packs per bundle
Packing MaterialPE / APP double-side heat-sealing film pre-made bags
Bag Storage300-400 bags, adjustable according to bag thickness
Machine Dimension3400 x 1800 x 1950 mm

Confirm your configuration

Confirm the finished product sample, parent roll or material supply, required output, power and air supply, and interfaces with adjacent equipment. Final dimensions, utilities and configuration should be agreed for the intended application.

View the original DB-IF-30P product page for complete current information.
