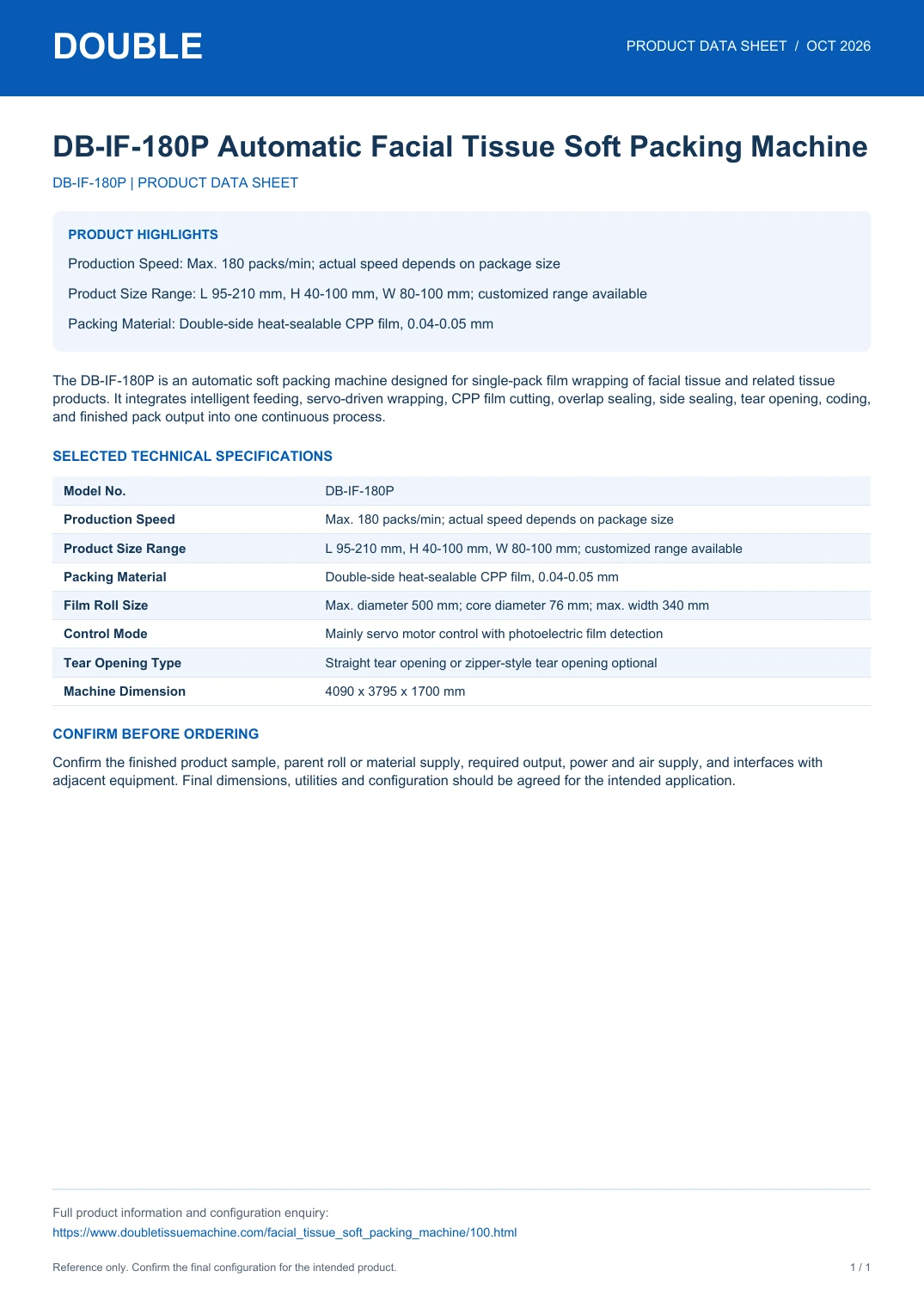

DB-IF-180P Automatic Facial Tissue Soft Packing Machine - PDF Data Sheet

The DB-IF-180P is an automatic soft packing machine designed for single-pack film wrapping of facial tissue and related tissue products. It integrates intelligent feeding, servo-driven wrapping, CPP film cutting, overlap sealing, side sealing, tear opening, coding, and finished pack output into one continuous process.

Product highlights

  • Production Speed: Max. 180 packs/min; actual speed depends on package size
  • Product Size Range: L 95-210 mm, H 40-100 mm, W 80-100 mm; customized range available
  • Packing Material: Double-side heat-sealable CPP film, 0.04-0.05 mm

Selected technical specifications

Model No.DB-IF-180P
Production SpeedMax. 180 packs/min; actual speed depends on package size
Product Size RangeL 95-210 mm, H 40-100 mm, W 80-100 mm; customized range available
Packing MaterialDouble-side heat-sealable CPP film, 0.04-0.05 mm
Film Roll SizeMax. diameter 500 mm; core diameter 76 mm; max. width 340 mm
Control ModeMainly servo motor control with photoelectric film detection
Tear Opening TypeStraight tear opening or zipper-style tear opening optional
Machine Dimension4090 x 3795 x 1700 mm

Confirm your configuration

Confirm the finished product sample, parent roll or material supply, required output, power and air supply, and interfaces with adjacent equipment. Final dimensions, utilities and configuration should be agreed for the intended application.

View the original DB-IF-180P product page for complete current information.
