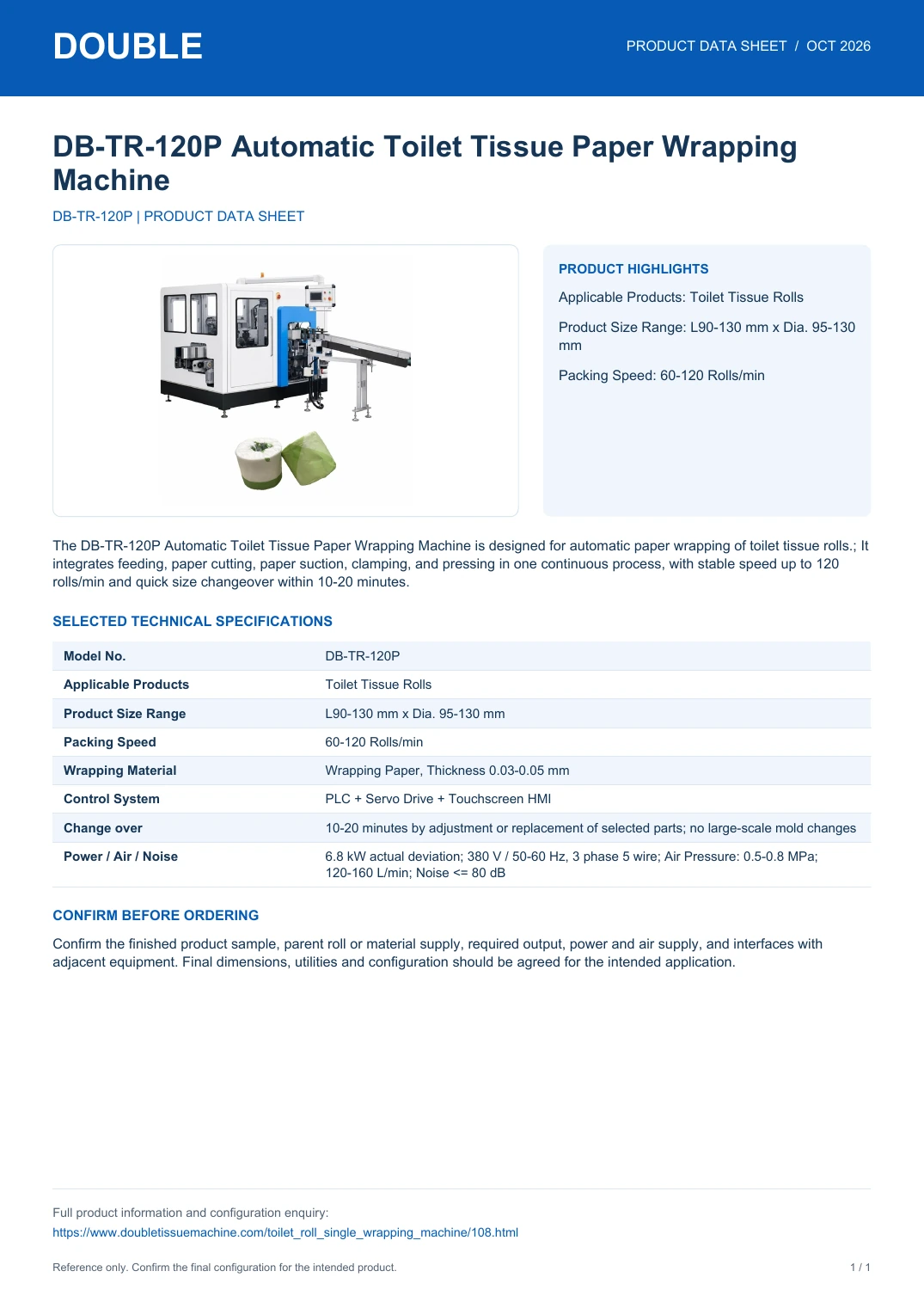

DB-TR-120P Automatic Toilet Tissue Paper Wrapping Machine - PDF Data Sheet

The DB-TR-120P Automatic Toilet Tissue Paper Wrapping Machine is designed for automatic paper wrapping of toilet tissue rolls.; It integrates feeding, paper cutting, paper suction, clamping, and pressing in one continuous process, with stable speed up to 120 rolls/min and quick size changeover within 10-20 minutes.

Product highlights

  • Applicable Products: Toilet Tissue Rolls
  • Product Size Range: L90-130 mm x Dia. 95-130 mm
  • Packing Speed: 60-120 Rolls/min

Selected technical specifications

Model No.DB-TR-120P
Applicable ProductsToilet Tissue Rolls
Product Size RangeL90-130 mm x Dia. 95-130 mm
Packing Speed60-120 Rolls/min
Wrapping MaterialWrapping Paper, Thickness 0.03-0.05 mm
Control SystemPLC + Servo Drive + Touchscreen HMI
Change over10-20 minutes by adjustment or replacement of selected parts; no large-scale mold changes
Power / Air / Noise6.8 kW actual deviation; 380 V / 50-60 Hz, 3 phase 5 wire; Air Pressure: 0.5-0.8 MPa; 120-160 L/min; Noise <= 80 dB

Confirm your configuration

Confirm the finished product sample, parent roll or material supply, required output, power and air supply, and interfaces with adjacent equipment. Final dimensions, utilities and configuration should be agreed for the intended application.

View the original DB-TR-120P product page for complete current information.
