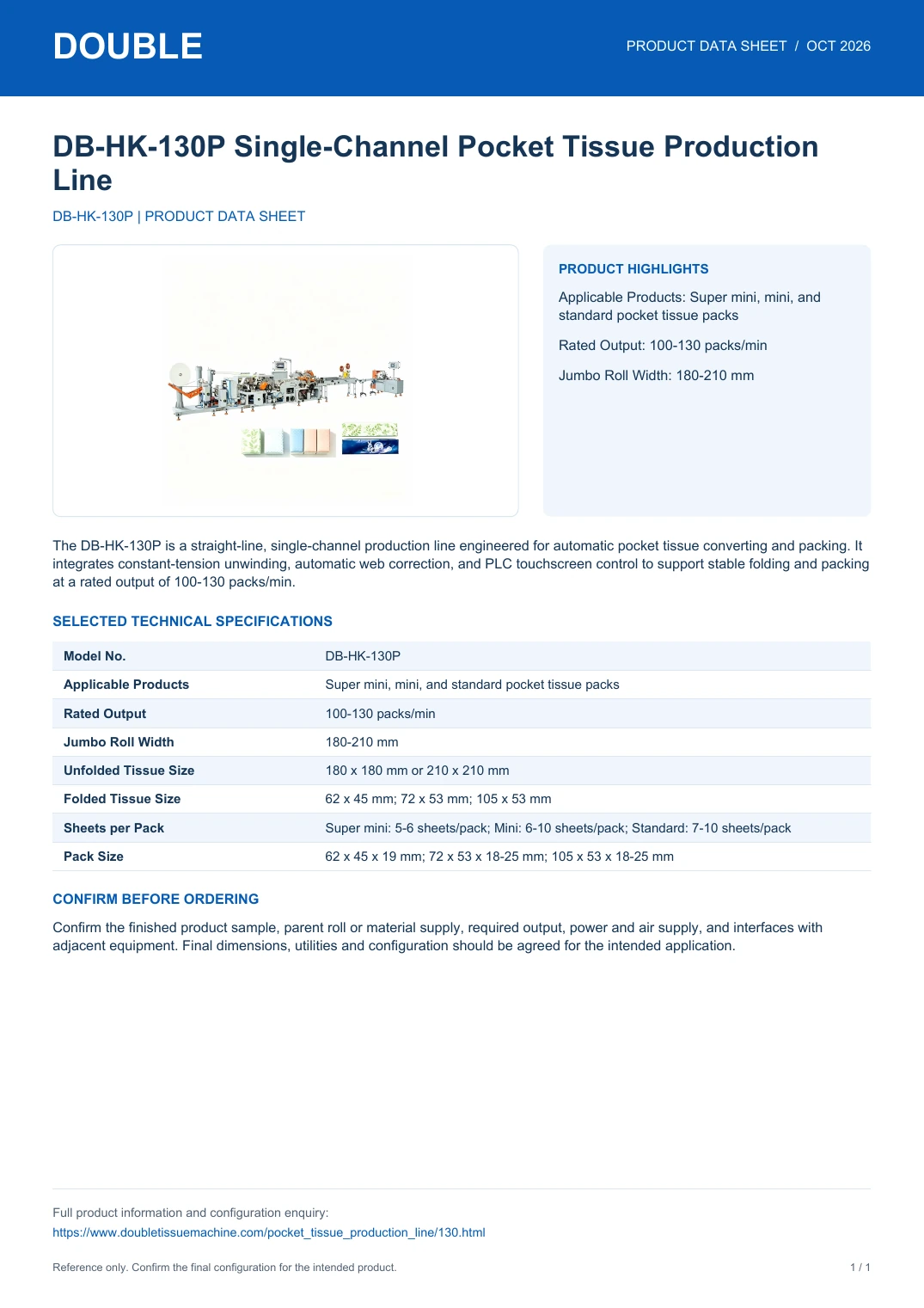

DB-HK-130P Single-Channel Pocket Tissue Production Line - PDF Data Sheet

The DB-HK-130P is a straight-line, single-channel production line engineered for automatic pocket tissue converting and packing. It integrates constant-tension unwinding, automatic web correction, and PLC touchscreen control to support stable folding and packing at a rated output of 100-130 packs/min.

Product highlights

  • Applicable Products: Super mini, mini, and standard pocket tissue packs
  • Rated Output: 100-130 packs/min
  • Jumbo Roll Width: 180-210 mm

Selected technical specifications

Model No.DB-HK-130P
Applicable ProductsSuper mini, mini, and standard pocket tissue packs
Rated Output100-130 packs/min
Jumbo Roll Width180-210 mm
Unfolded Tissue Size180 x 180 mm or 210 x 210 mm
Folded Tissue Size62 x 45 mm; 72 x 53 mm; 105 x 53 mm
Sheets per PackSuper mini: 5-6 sheets/pack; Mini: 6-10 sheets/pack; Standard: 7-10 sheets/pack
Pack Size62 x 45 x 19 mm; 72 x 53 x 18-25 mm; 105 x 53 x 18-25 mm

Confirm your configuration

Confirm the finished product sample, parent roll or material supply, required output, power and air supply, and interfaces with adjacent equipment. Final dimensions, utilities and configuration should be agreed for the intended application.

View the original DB-HK-130P product page for complete current information.
