DB-WT-50P Automatic Wet Tissue Bundle Packing Machine

Pack / Box Size Range	L 120-200 mm, H 20-60 mm, W 80-120 mm
Applicable Tissue Product	Wet tissue packs
Packaging Material	CPP, PE film, paper-plastic film; M-type pre-made bag / roll film tube bag
Packing Speed	40-50 packs/min

Get Quote

+86 139 0819 6540

DB-WT-50P Automatic Wet Tissue Bundle Packing Machine

The DB-WT-50P is an automatic bundle packing machine built for mini wet wipes packs, using pre-made bags for a clean, finished bundle. It connects to your upstream feeding line and handles film positioning, bag making, bag opening, product inserting, sealing, and finished bundle output automatically.

Key Features

Automatic pre-made bag bundle packing for mini wet tissue packs.
Front-end conveyor connection for accurate product feeding.
Pressing-type feeding with counting, detection protection, and no-material standby.
Automatic film positioning, bag making, feeding, opening, inserting, sealing, and output.
Jam alarm, forming protection, and stable finished bundle discharge.
Optional printing, no-film alarm, and automatic film correction.
Hechuan servo control with touchscreen operation and 24 VDC I/O circuit.

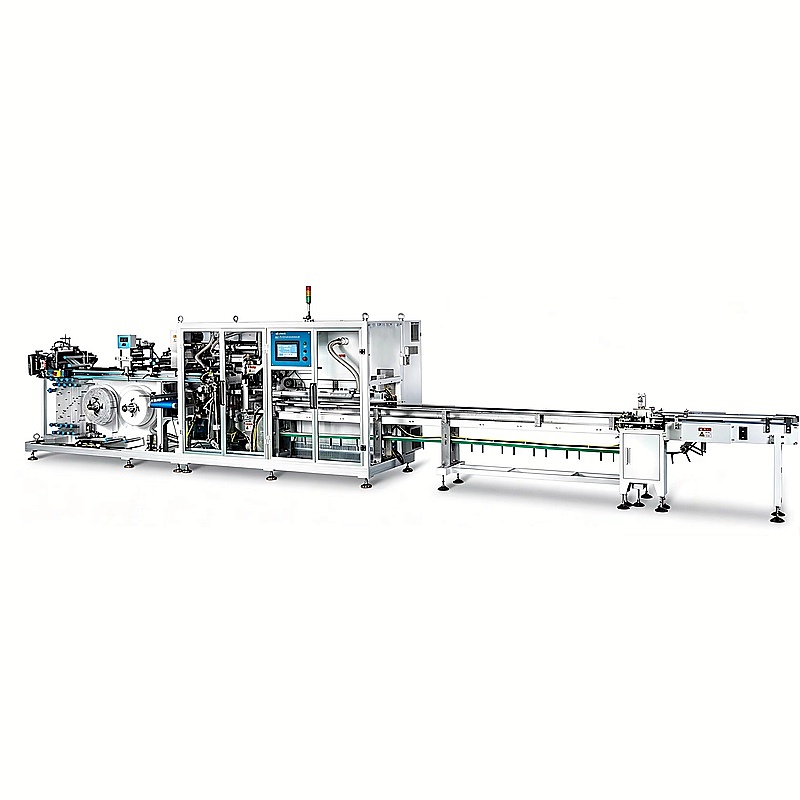

DB-WT-50P automatic wet tissue bundle packing machine

DB-WT-50P packing machine front view DB-WT-50P packing machine detail view

Optional Configuration

Product size range and forming mold customization to match your pack format.
Production information printing for batch or date coding.
No-film alarm and automatic film correction to reduce downtime.
Voltage and electrical configuration for export markets.
Upstream feeding and downstream packing connection for full line integration.

Selection Guide

To get an accurate configuration and quotation, please provide the following details:

Mini wet wipes bundle size and packing format.
Film material, thickness, roll diameter, and roll width.
Required packing speed and upstream feeding method.
Printing, film correction, and alarm requirements.
Voltage, air supply, layout, and line connection requirements.

Model No. DB-WT-50P

Production Speed 40–50 packs/min (actual speed depends on package size)

Product Size Range L 120–200 mm, W 80–120 mm, H 20–60 mm; customized range available

Packing Material CPP, PE film, paper-plastic film; M-type pre-made bag / roll film tube bag

Film Specification Film thickness 0.05–0.08 mm; max. roll diameter 600 mm; core diameter 76.2 mm; max. width 210 mm

Packing Method Full-seal packing with fork-angle forming and forming mold

Machine Dimension 7570 × 1250 × 1650 mm

Machine Weight ≤ 3000 kg

Power & Air 380 V / 50 Hz; total power 18 kW; compressed air pressure ≥ 0.5 MPa

Control System Hechuan servo control with touchscreen and 24 VDC I/O control circuit

Model No.	DB-WT-50P
Production Speed	40–50 packs/min (actual speed depends on package size)
Product Size Range	L 120–200 mm, W 80–120 mm, H 20–60 mm; customized range available
Packing Material	CPP, PE film, paper-plastic film; M-type pre-made bag / roll film tube bag
Film Specification	Film thickness 0.05–0.08 mm; max. roll diameter 600 mm; core diameter 76.2 mm; max. width 210 mm
Packing Method	Full-seal packing with fork-angle forming and forming mold
Machine Dimension	7570 × 1250 × 1650 mm
Machine Weight	≤ 3000 kg
Power & Air	380 V / 50 Hz; total power 18 kW; compressed air pressure ≥ 0.5 MPa
Control System	Hechuan servo control with touchscreen and 24 VDC I/O control circuit
