Glue-Free Laminated Tissue Embosser Workshop Photos

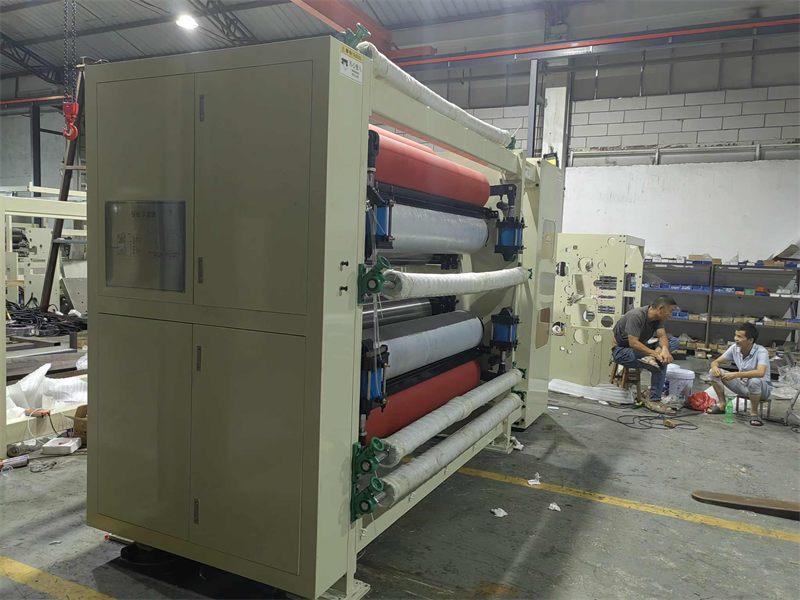

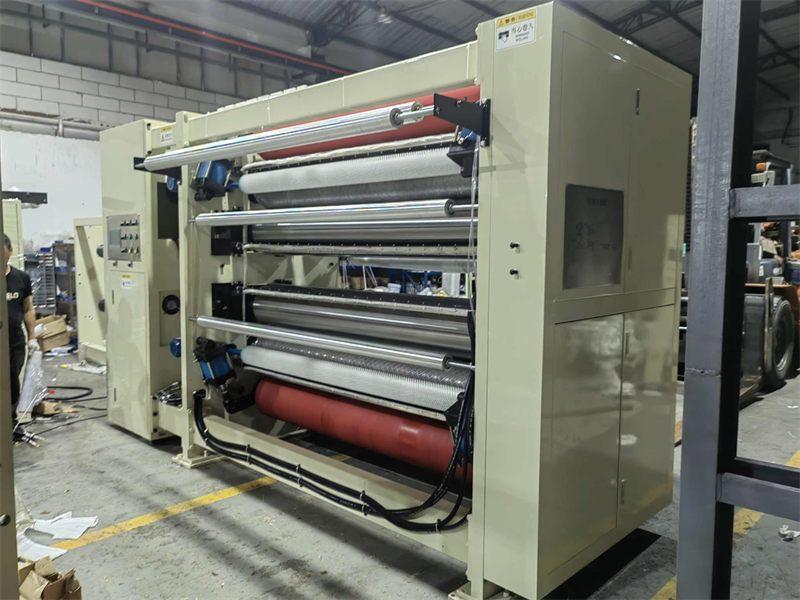

These workshop photos show the Glue-free Laminated Tissue Embosser from several angles. The images highlight its roller arrangement, machine frame and surrounding work area, giving buyers a closer look at the equipment in a workshop setting.

What These Glue-Free Laminated Tissue Embosser Photos Show

Buyers comparing tissue converting equipment often work from catalog drawings and specification sheets alone. Workshop photos add a second layer of information: how the machine is actually built, how much floor space the frame and roller section occupy, and how the embossing unit sits relative to the rest of the line. For a glue-free laminated tissue embosser, that visual context matters because the lamination and embossing section determines how the plies are combined before folding, cutting, or packing.

The images below were taken in a working workshop environment rather than a studio. They are intended to help project managers, engineers, and procurement teams judge build quality, access space for maintenance, and the general layout of the equipment before requesting a formal quotation.

How to Read the Roller Arrangement and Machine Frame

When reviewing embosser photos, it helps to look at the machine in a fixed order instead of scanning the whole picture at once. The points below describe what each area of the equipment typically tells a buyer.

• Roller arrangement: the number and position of embossing and laminating rollers indicate how the plies are pressed and combined, and whether the unit is set up for a glue-free process.
• Machine frame: frame thickness, side plates, and base structure give an indication of rigidity, which affects vibration and web stability at higher running speeds.
• Surrounding work area: the space around the machine shows how much clearance is available for threading, roller changes, and routine cleaning.
• Drive and control side: the position of motors, gearboxes, and control cabinets affects cable routing and how the embosser connects to upstream and downstream equipment.
• Floor and foundation: visible mounting points and floor condition help estimate installation and leveling work on site.
•

Why Glue-Free Lamination Is Chosen for Tissue Converting

Glue-free lamination combines tissue plies through mechanical embossing and pressure rather than adhesive. Buyers usually consider this route when they want to avoid glue-related consumables, reduce the risk of adhesive residue affecting the finished tissue feel, and simplify the consumable supply chain. The trade-off is that ply bonding depends more heavily on roller condition, embossing pattern, and consistent web tension, so the mechanical build quality visible in these photos becomes a practical selection factor rather than a cosmetic detail.

Final performance still depends on the confirmed configuration, the parent roll specification, the finished tissue format, and the target output of the complete line. Photos alone cannot confirm capacity, so any figures should be checked against the machine's technical documentation.

What Buyers Should Prepare Before Requesting a Quotation

To move from photos to a workable proposal, it helps to send the following information together with your inquiry. This reduces back-and-forth and lets the engineering team match the embosser to your line.

1. Finished tissue format and folded or rolled product size.
2. Parent roll width, diameter, and ply structure.
3. Target output or running speed for the complete line.
4. Required automation level and how the embosser connects to upstream and downstream machines.
5. Available floor space, layout constraints, and utility supply such as voltage and air pressure.

Next Step

If these workshop views match the type of equipment you are evaluating, you can review the wider machine range in the tissue converting machines catalog, or send your product size, parent roll specification, target output, and layout requirements to our engineering team for a configuration discussion.
