Paper Napkin Machine Workshop Photos and Equipment Layout

Paper Napkin Machine Workshop Photos: What Buyers Can Learn from the Shop Floor

Workshop photos are one of the fastest ways to judge whether a paper napkin machine matches your factory conditions. Catalog renders and specification sheets describe capacity and fold options, but they rarely show how much floor space the unit occupies, how the operator reaches the folding section, or how the finished napkins actually sit on the output tray. The images below show the DB-NK-230 automatic napkin tissue machine installed in a workshop, covering both the wider equipment layout and a close-up of folded napkins after discharge.

For buyers comparing napkin converting equipment, this kind of shop-floor view answers practical questions that drawings cannot: how the machine sits relative to surrounding aisles, where the parent roll and electrical connections are positioned, and what the finished 1/4 or 1/6 fold napkins look like when they leave the machine. Use the photos together with the confirmed specification sheet rather than as a substitute for it.

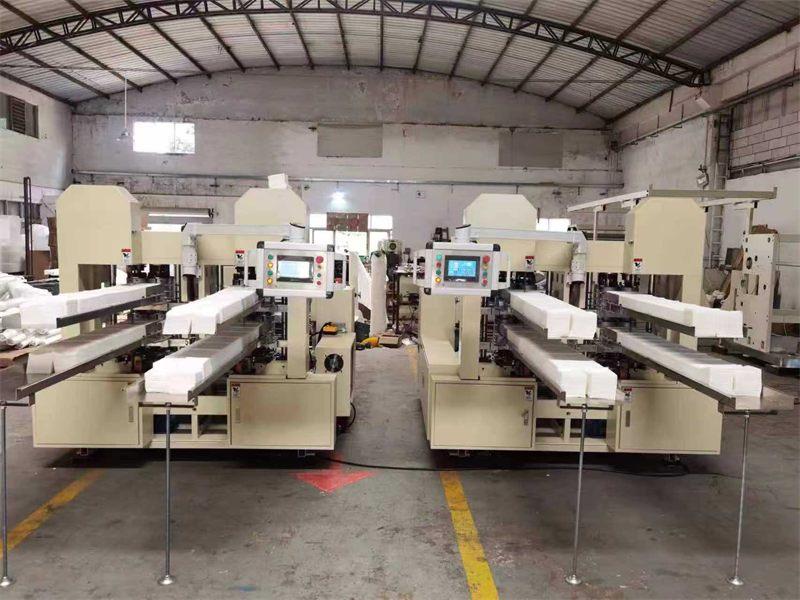

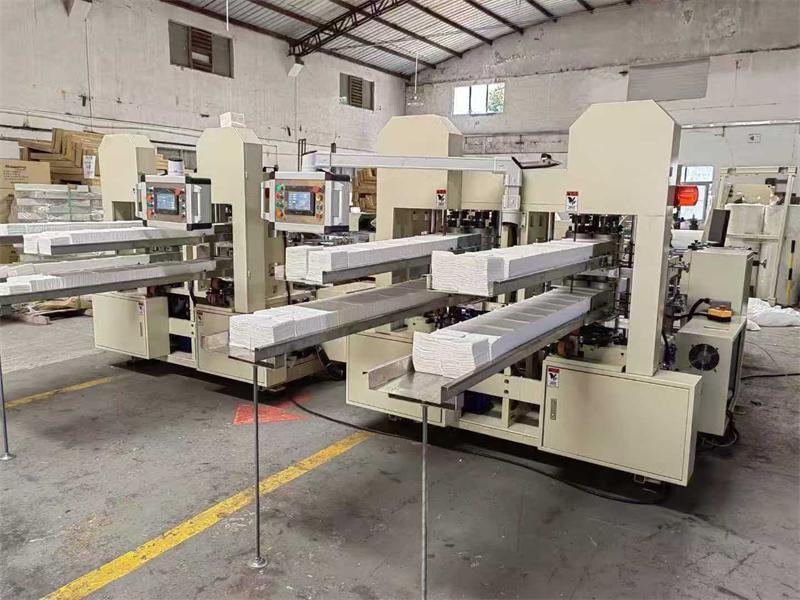

What the Wide Shots Show About Equipment Layout

The wider views are useful for factory planning. They show the machine as a complete unit rather than a set of isolated components, which helps project teams estimate the footprint, plan material flow from the parent roll to the folding and counting section, and check whether there is enough clearance for maintenance access around the machine frame.

• Footprint and aisle space: judge how much room is needed for loading, operation, and service access.
• Machine frame and guarding: see how the folding, embossing, and cutting sections are arranged along the frame.
• Output side: check where the finished napkins are discharged and how they would connect to a downstream packing machine.
• Utilities and connections: confirm where power and air supply lines are expected to enter the machine.
•

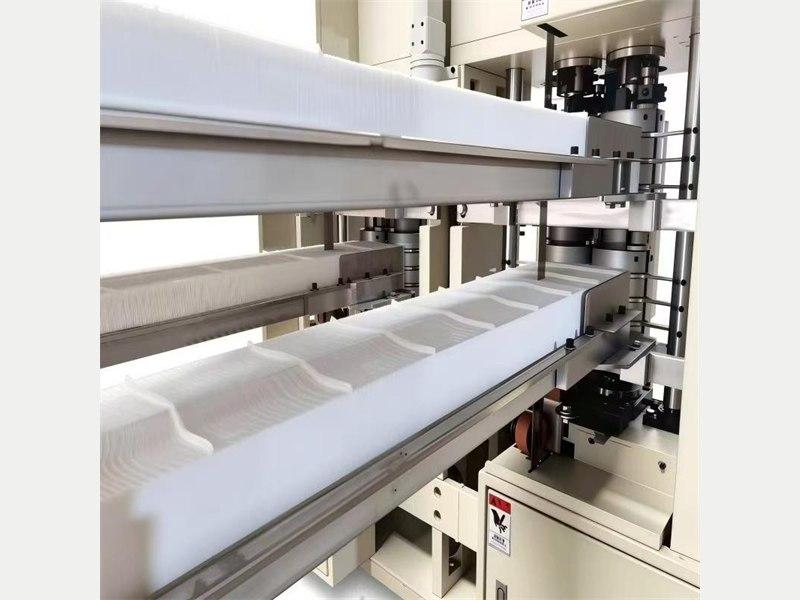

What the Close-Up Shows About Finished Napkins

The close-up of folded napkins on the output tray is the most useful image for product-quality discussions. It shows the fold pattern and stacking condition of the napkins as they come off the machine, which is what your customers will actually see in the pack. When reviewing this image with a supplier, it helps to confirm the target fold type, the finished napkin size, the ply, and the counting or stacking arrangement required for your market.

Photos alone cannot confirm running speed, output per shift, or acceptance values. Those figures depend on the confirmed configuration, the parent roll specification, and the operating settings agreed for your project, so they should always be checked against the machine's technical documentation.

How to Use These Photos in Your Selection Process

Treat workshop photos as one input among several. A practical comparison sequence for a napkin tissue project looks like this:

1. Confirm the finished product: fold type, napkin size, ply, and pack format.
2. Match the machine model and folding configuration to that product.
3. Check the layout against your available floor space and material flow.
4. Review the downstream packing step if you need a complete line.
5. Verify utilities, operator requirements, and maintenance access before ordering.

If you are still at the early stage of comparing fold options, the overview of the napkin paper machine range is a useful starting point, and the napkin tissue production solution page explains how converting and packing equipment are combined into a working line.

Next Step

Send us your finished napkin specification, target output, and available floor space, and our engineering team can advise on a suitable machine configuration and layout for your workshop.
