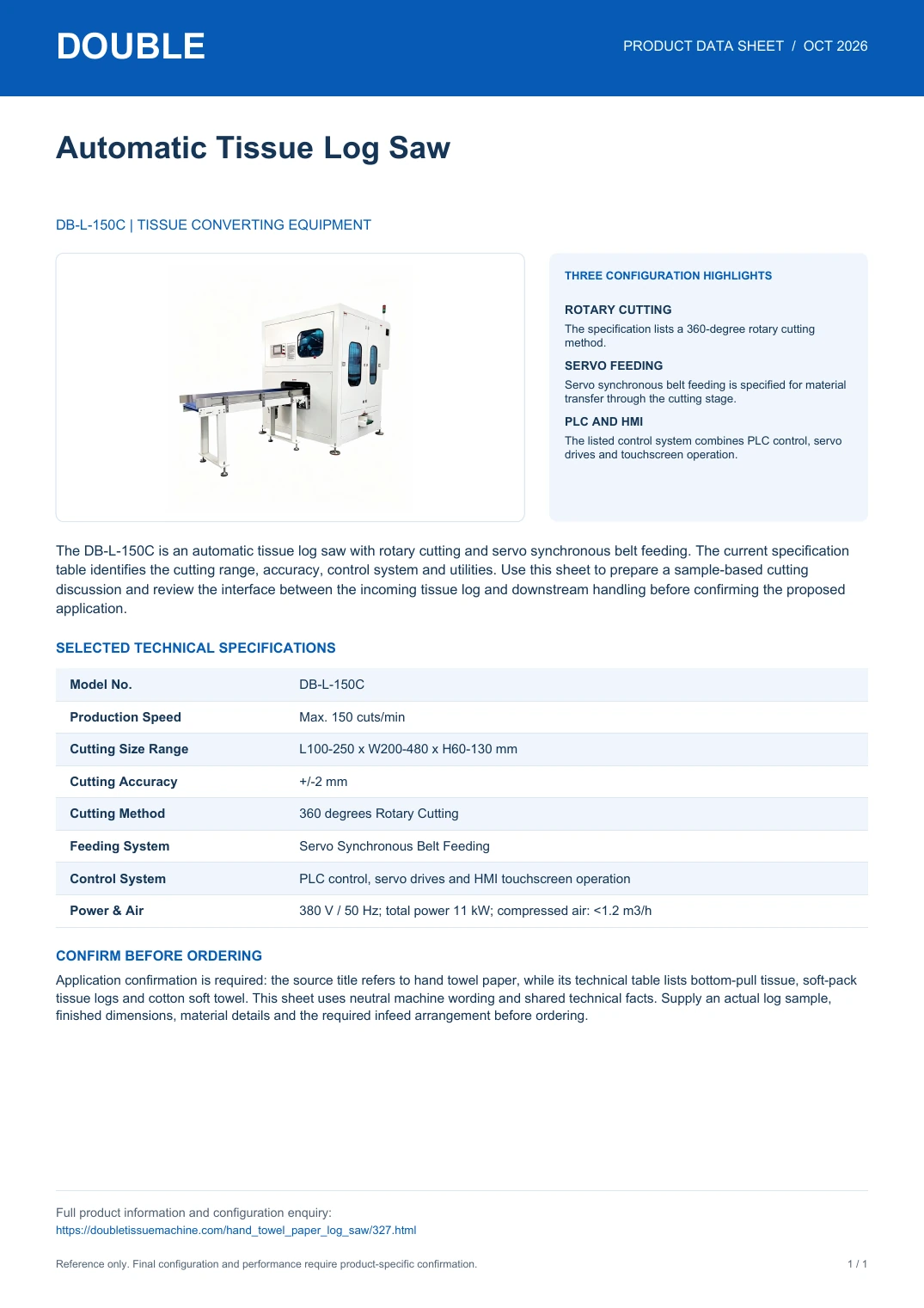

DB-L-150C Tissue Log Saw - PDF Data Sheet

The DB-L-150C is an automatic tissue log saw with rotary cutting and servo synchronous belt feeding. The current specification table identifies the cutting range, accuracy, control system and utilities. Use this sheet to prepare a sample-based cutting discussion and review the interface between the incoming tissue log and downstream handling before confirming the proposed application.

What the data sheet covers

• Rotary cutting: The specification lists a 360-degree rotary cutting method.
• Servo feeding: Servo synchronous belt feeding is specified for material transfer through the cutting stage.
• PLC and HMI: The listed control system combines PLC control, servo drives and touchscreen operation.

Key source specifications

• Production Speed: Max. 150 cuts/min
• Cutting Size Range: L100-250 x W200-480 x H60-130 mm
• Cutting Accuracy: +/-2 mm
• Cutting Method: 360 degrees Rotary Cutting

Confirm your configuration

Application confirmation is required: the source title refers to hand towel paper, while its technical table lists bottom-pull tissue, soft-pack tissue logs and cotton soft towel. This sheet uses neutral machine wording and shared technical facts. Supply an actual log sample, finished dimensions, material details and the required infeed arrangement before ordering.
