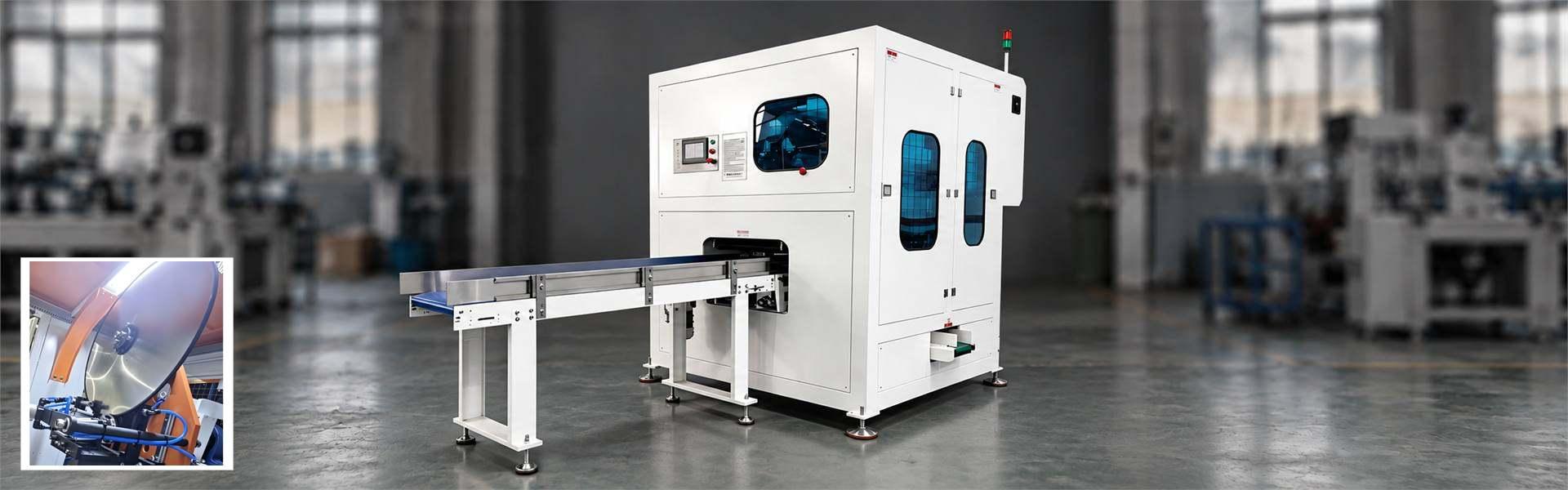

DB-L-150C Automatic Hand Towel Paper Log Saw Cutting Machine

Machine Model	DB-L-150C
Cutting Speed	150 cuts/min
Cutting / Adjustment Range	L 100-250 × W 200-480 × H 60-130 mm
Blade / Cutting Method	360° Rotary Cutting

Get Quote

+86 139 0819 6540

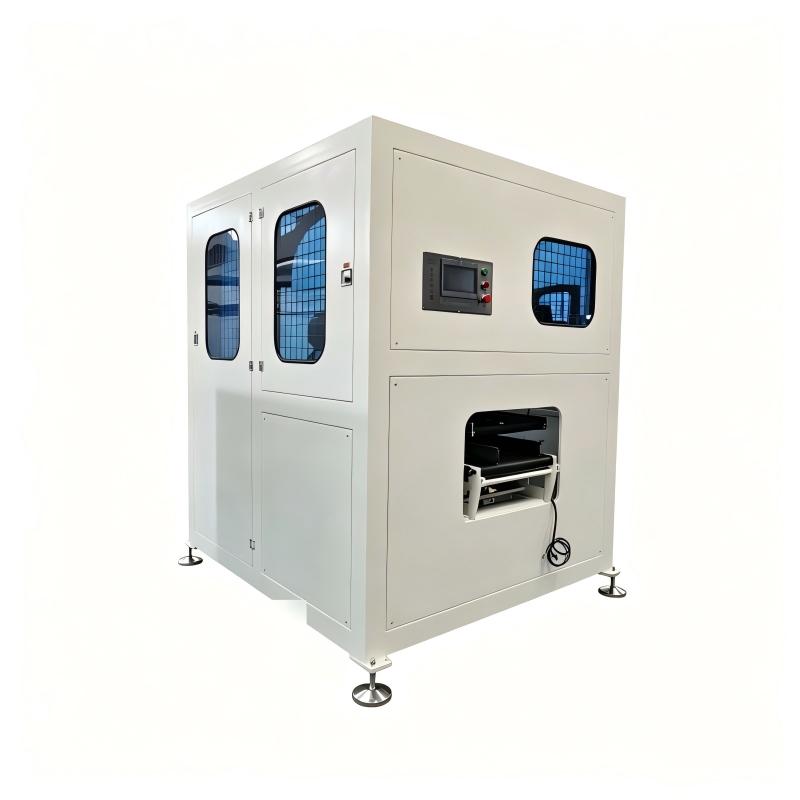

DB-L-150C Automatic Tissue Log Saw

The DB-L-150C is an automatic tissue log saw designed for precise, high-speed cutting of soft-pack tissue logs, bottom-pull tissue, and cotton soft towel products. It provides flexible configuration and consistent cutting accuracy, making it a reliable choice for tissue manufacturers and converters who need efficient, versatile production.

Key Features

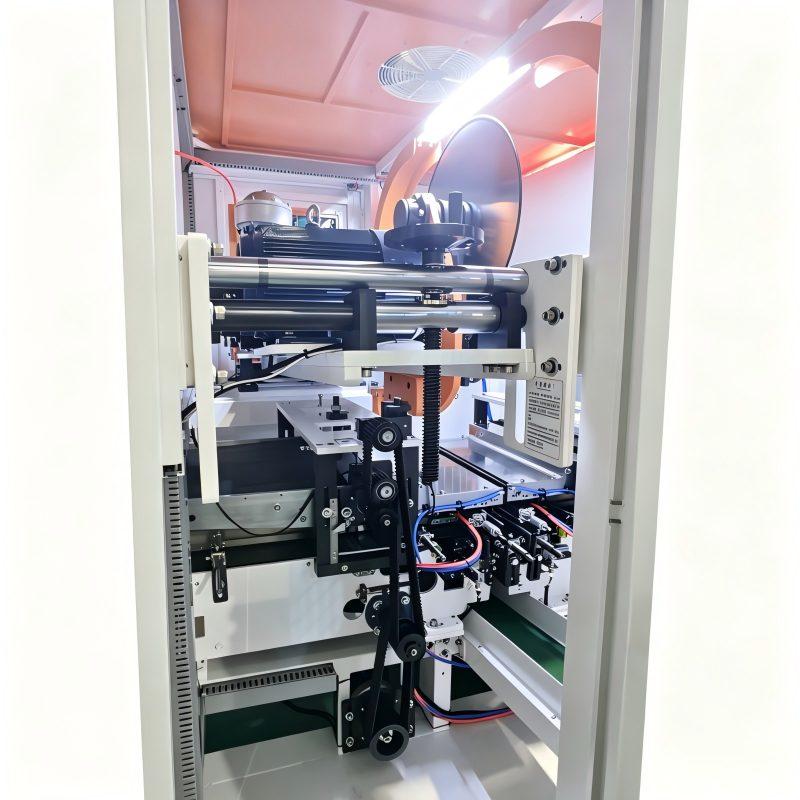

Servo synchronous belt feeding system ensures accurate product positioning for each cut.
Automatic knife sharpening maintains cutting consistency over extended operation.
PLC control with HMI touchscreen simplifies setup, monitoring, and changeovers.
Automatic trimming function helps minimize material waste during production.

Optional Configuration

Customized cutting size range according to different tissue products.
Customized product feeding and positioning solutions.
Export voltage and electrical system customization.
Upstream converting line connection.
Downstream packing line integration.
Customized production line layout solutions.

Selection Guide

To provide an accurate quotation and configuration, please prepare the following details:

Tissue product type and specific product dimensions.
Finished pack dimensions and cutting requirements.
Required production speed and target output capacity.
Details of your upstream tissue converting line.
Downstream packaging requirements.
Factory layout and installation conditions.
Local voltage and electrical requirements.

Model No.	DB-L-150C
Applicable Products	Bottom-pull tissue, soft-pack tissue logs and cotton soft towel
Production Speed	Max. 150 cuts/min
Cutting Size Range	L100–250 × W200–480 × H60–130 mm
Cutting Accuracy	±2 mm
Cutting Method	360° Rotary Cutting
Feeding System	Servo Synchronous Belt Feeding
Control System	PLC control, servo drives and HMI touchscreen operation
Power & Air	380 V / 50 Hz; total power 11 kW; compressed air: <1.2 m³/h
Machine Dimension / Weight	L 2000 × W 1850 × H 2150 mm, without infeed conveyor / ≤2 tones
