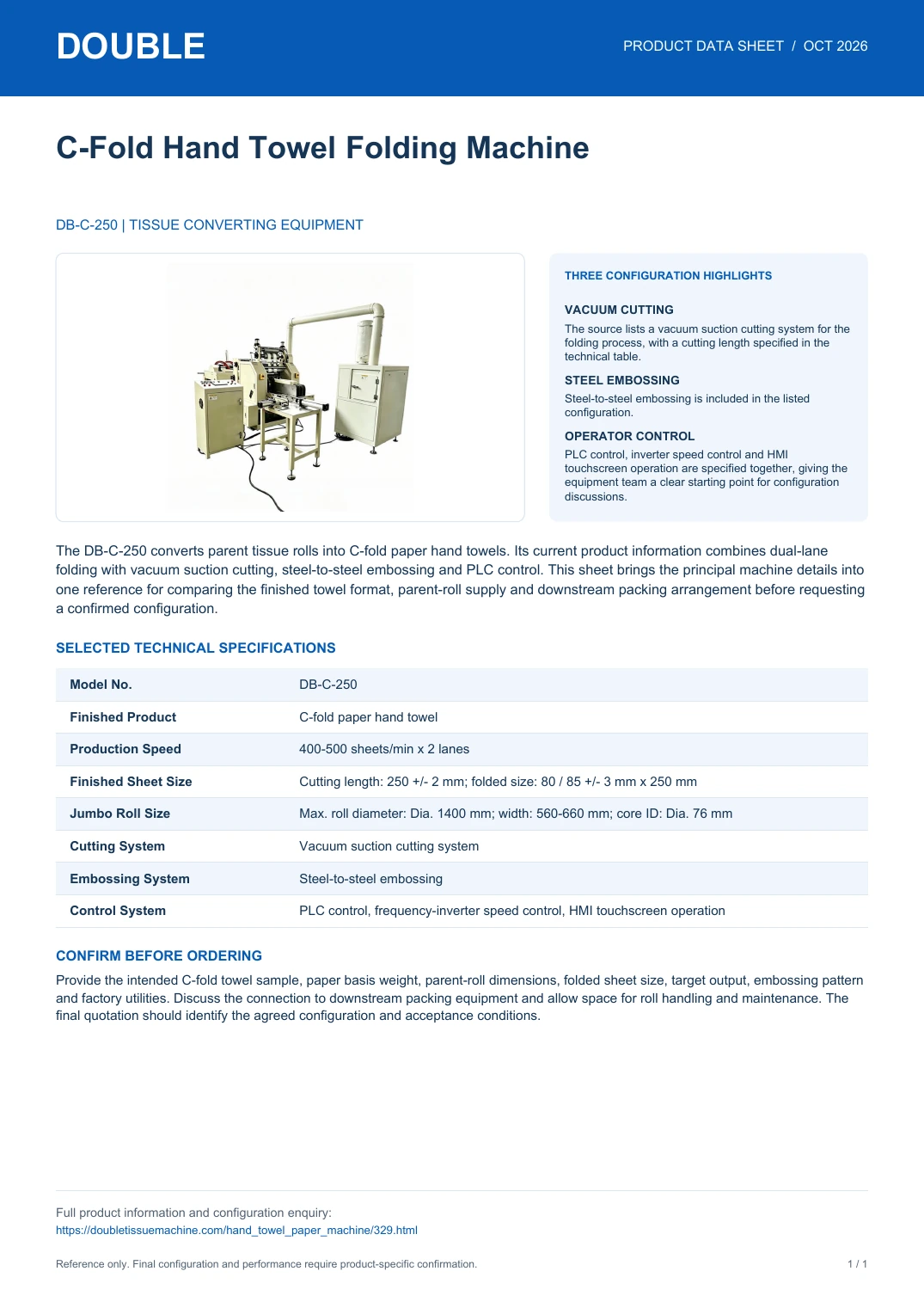

DB-C-250 Hand Towel Folding Machine - PDF Data Sheet

The DB-C-250 converts parent tissue rolls into C-fold paper hand towels. Its current product information combines dual-lane folding with vacuum suction cutting, steel-to-steel embossing and PLC control. This sheet brings the principal machine details into one reference for comparing the finished towel format, parent-roll supply and downstream packing arrangement before requesting a confirmed configuration.

What the data sheet covers

• Vacuum cutting: The source lists a vacuum suction cutting system for the folding process, with a cutting length specified in the technical table..
• Steel embossing: Steel-to-steel embossing is included in the listed configuration.
• Operator control: PLC control, inverter speed control and HMI touchscreen operation are specified together, giving the equipment team a clear starting point for configuration discussions..

Key source specifications

• Finished Product: C-fold paper hand towel
• Production Speed: 400-500 sheets/min x 2 lanes
• Finished Sheet Size: Cutting length: 250 +/- 2 mm; folded size: 80 / 85 +/- 3 mm x 250 mm
• Jumbo Roll Size: Max. roll diameter: Dia. 1400 mm; width: 560-660 mm; core ID: Dia. 76 mm

Confirm your configuration

Provide the intended C-fold towel sample, paper basis weight, parent-roll dimensions, folded sheet size, target output, embossing pattern and factory utilities. Discuss the connection to downstream packing equipment and allow space for roll handling and maintenance. The final quotation should identify the agreed configuration and acceptance conditions.

View the original DB-C-250 product page for the complete current information.
