DB-C-250 Automatic C-Fold Hand Towel Paper Folding Machine

DB-C-250 Automatic C-Fold Hand Towel Paper Folding Machine

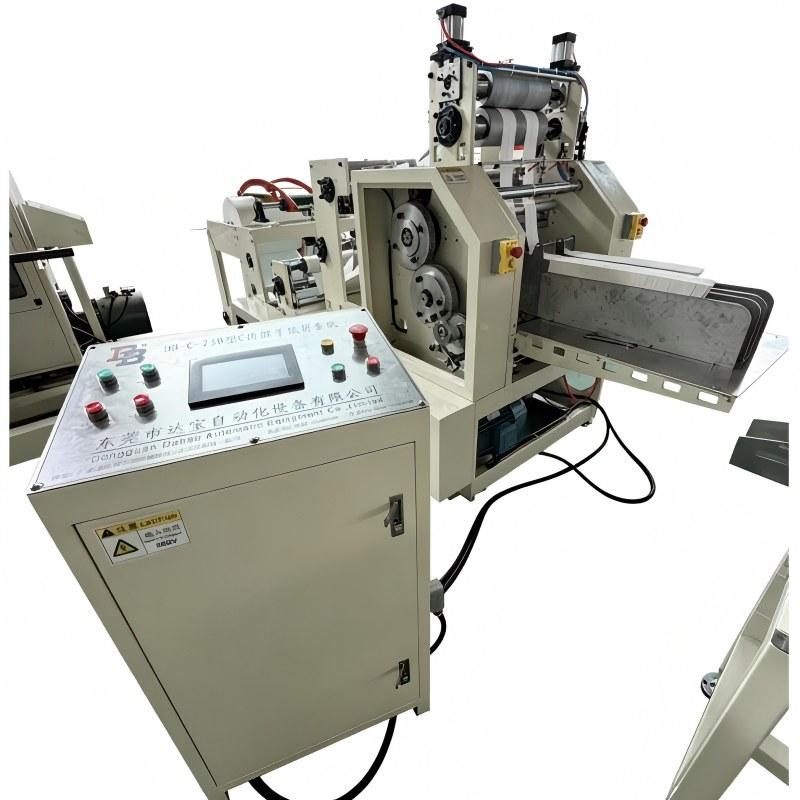

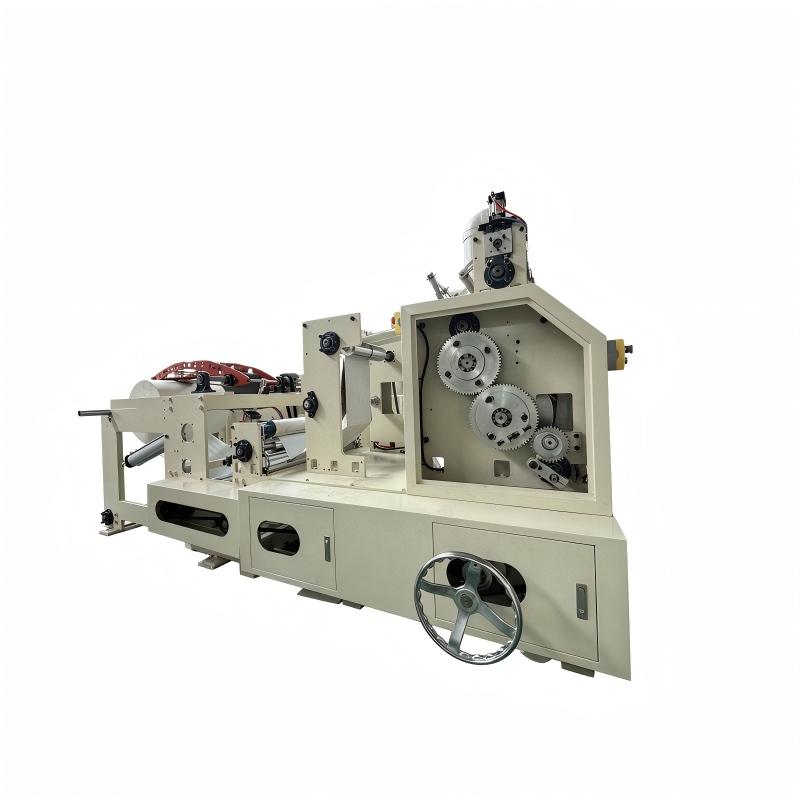

The DB-C-250 Automatic C-Fold Hand Towel Paper Folding Machine is engineered for high-speed, reliable production of C-fold paper hand towels. It integrates vacuum suction cutting, steel-to-steel embossing, PLC control, and HMI touchscreen operation into a single automated line. With dual-lane output and a solid steel frame, it is built for tissue converters and paper towel manufacturers who need consistent, efficient converting.

Key Features for Stable Converting

• Adjustable pneumatic flying knife for precise, clean cuts at high speed.
• Laser-engraved steel-to-steel embossing rolls for durable, consistent patterns.
• 40 mm thick solid steel frame minimizes vibration and maintains long-term alignment.

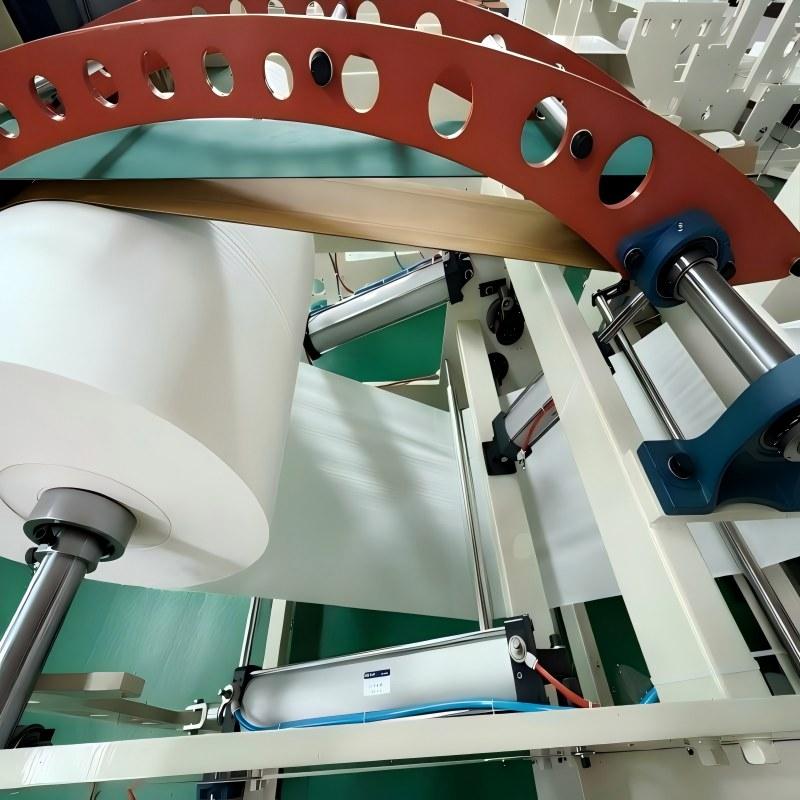

• Floor-standing stand with pneumatic jumbo roll loading reduces operator effort and downtime.
• Touchscreen operation with inverter speed control, inkjet counting, and emergency stop for full process control.

Optional Configuration and Line Integration

The DB-C-250 can be adapted to your production needs. Discuss the following options with our engineers to match the machine to your finished product and downstream packing line.

• Customized embossing patterns for branded or specialty towels.
• Different folded hand towel sizes and folding formats.
• Customized production solutions according to customer requirements.
• Automatic packing solutions and downstream equipment integration, such as a hand towel paper packing machine.

Selection Guide: Information Needed for Quotation

To prepare an accurate quotation and machine configuration, please provide the following details. This helps us confirm the correct setup for your jumbo roll specifications, finished sheet size, and target output.

• Required finished product type (e.g., C-fold, multi-fold).
• Paper basis weight (g/m²).
• Jumbo roll diameter and width.
• Jumbo roll core inside diameter.
• Required cutting length.
• Required folded sheet size.
• Target production speed.
• Embossing pattern requirements.
• Factory power supply and frequency.
• Upstream and downstream equipment details for line integration.

Buyer Questions: What to Consider Before Ordering

• Line integration: Confirm the output speed of your existing or planned packing line to ensure the DB-C-250 matches its capacity.
• Material compatibility: Verify the paper basis weight and jumbo roll specifications you plan to run to ensure consistent cutting and folding.
• Factory utilities: Check your available power supply (voltage, frequency, phase) and compressed air pressure (0.5 MPa) before installation.
• Maintenance access: Plan floor space for the machine (L4200 × W3400 × H1950 mm) and allow room for roll loading and routine cleaning of the cutting and embossing units.

Practical Operating Experience

During commissioning, verify the pneumatic jumbo roll loading system and the vacuum suction cutting unit are correctly aligned with the parent roll width. Check the steel-to-steel embossing rolls for even pressure across the web to avoid pattern distortion. For routine operation, monitor the inkjet counter and touchscreen for consistent sheet counts, and keep the cutting area clear of paper dust to maintain cut quality. Confirm the final folded sheet size and cutting length against your target specification before full production runs.
