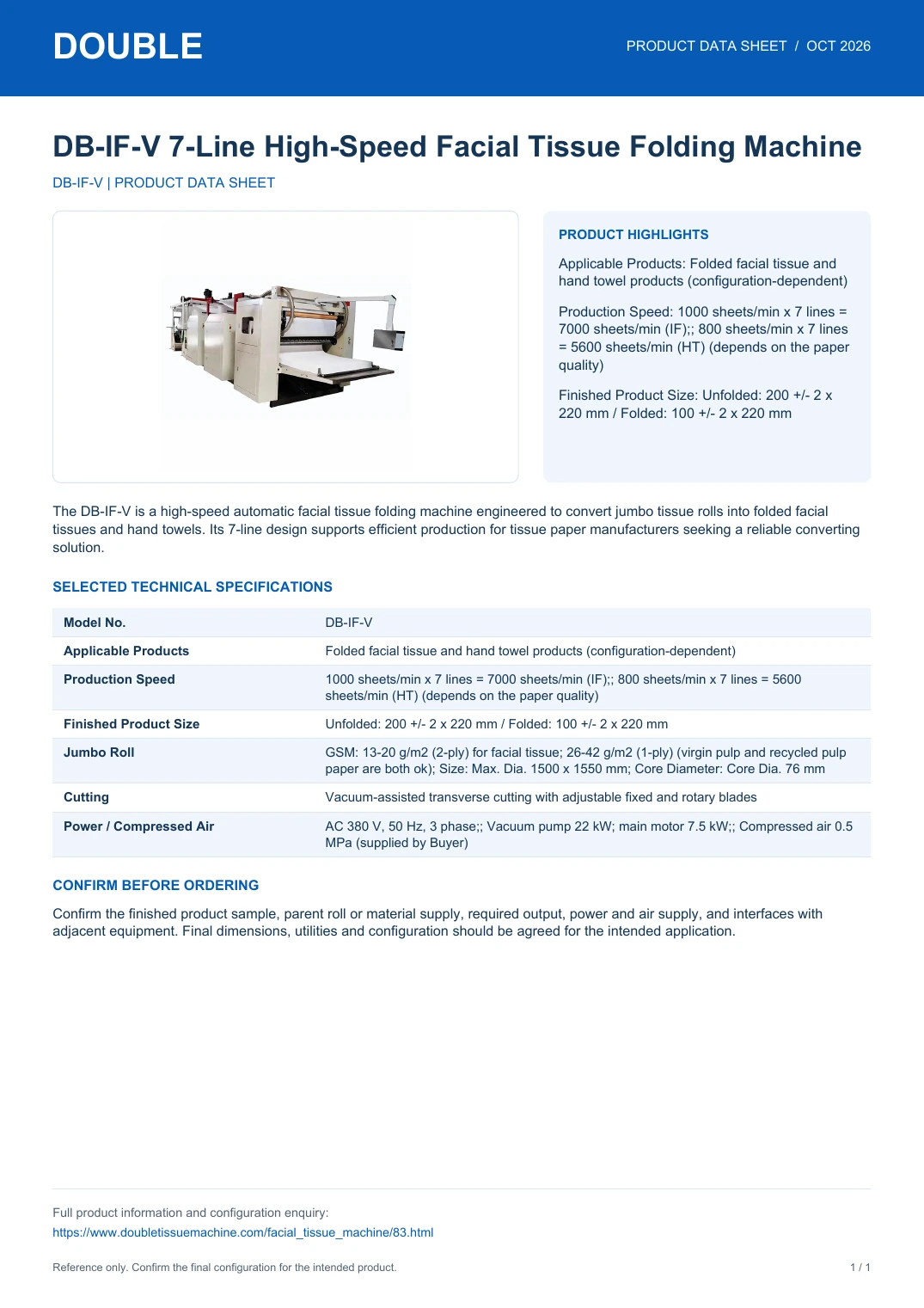

DB-IF-V 7-Line High-Speed Facial Tissue Folding Machine - PDF Data Sheet

The DB-IF-V is a high-speed automatic facial tissue folding machine engineered to convert jumbo tissue rolls into folded facial tissues and hand towels. Its 7-line design supports efficient production for tissue paper manufacturers seeking a reliable converting solution.

Product highlights

  • Applicable Products: Folded facial tissue and hand towel products (configuration-dependent)
  • Production Speed: 1000 sheets/min x 7 lines = 7000 sheets/min (IF);; 800 sheets/min x 7 lines = 5600 sheets/min (HT) (depends on the paper quality)
  • Finished Product Size: Unfolded: 200 +/- 2 x 220 mm / Folded: 100 +/- 2 x 220 mm

Selected technical specifications

Model No.DB-IF-V
Applicable ProductsFolded facial tissue and hand towel products (configuration-dependent)
Production Speed1000 sheets/min x 7 lines = 7000 sheets/min (IF);; 800 sheets/min x 7 lines = 5600 sheets/min (HT) (depends on the paper quality)
Finished Product SizeUnfolded: 200 +/- 2 x 220 mm / Folded: 100 +/- 2 x 220 mm
Jumbo RollGSM: 13-20 g/m2 (2-ply) for facial tissue; 26-42 g/m2 (1-ply) (virgin pulp and recycled pulp paper are both ok); Size: Max. Dia. 1500 x 1550 mm; Core Diameter: Core Dia. 76 mm
CuttingVacuum-assisted transverse cutting with adjustable fixed and rotary blades
Power / Compressed AirAC 380 V, 50 Hz, 3 phase;; Vacuum pump 22 kW; main motor 7.5 kW;; Compressed air 0.5 MPa (supplied by Buyer)

Confirm your configuration

Confirm the finished product sample, parent roll or material supply, required output, power and air supply, and interfaces with adjacent equipment. Final dimensions, utilities and configuration should be agreed for the intended application.

View the original DB-IF-V product page for complete current information.

DB-IF-V 7-Line High-Speed Facial Tissue Folding Machine - PDF Data Sheet
Download DB-IF-V 7-Line High-Speed Facial Tissue Folding Machine - PDF Data Sheet Brochure Loading... Download our latest DB-IF-V 7-Line High-Speed Facial Tissue Folding Machine - PDF Data Sheet catalog to explore product features, models, and technical specifications. Submit the form to get instant access. Submit & Download
