DB-IF-V 7-Line High-Speed Facial Tissue Folding Machine

DB-IF-V 7-Line High-Speed Facial Tissue Folding Machine

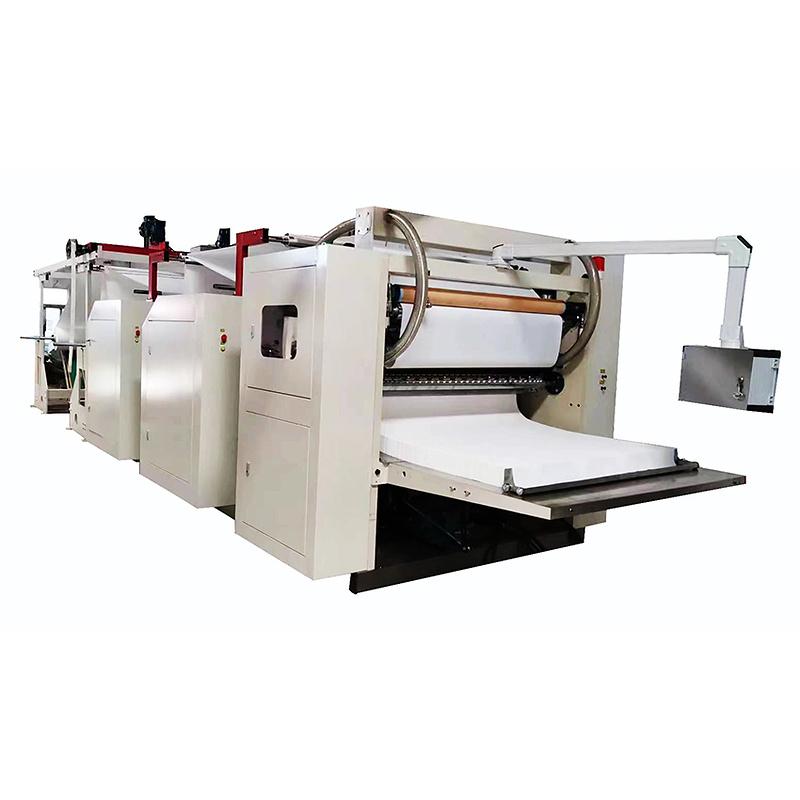

The DB-IF-V is a high-speed automatic facial tissue folding machine engineered to convert jumbo tissue rolls into folded facial tissues and hand towels. Its 7-line design supports efficient production for tissue paper manufacturers seeking a reliable converting solution.

Available in IF and HT configurations, this tissue converting machine integrates jumbo roll unwinding, optional embossing, vacuum-assisted transverse cutting, folding, and PLC/HMI control for stable operation and flexible production.

Production Capabilities and Core Features

• 7-line high-speed output up to 7,000 sheets/min (IF) or 5,600 sheets/min (HT), depending on paper quality.
• Produces folded facial tissue and hand towel products in a range of finished sizes.
• Dual independently driven jumbo roll unwinding stands for continuous operation.
• Vacuum-assisted transverse cutting ensures consistent tissue sheet quality.

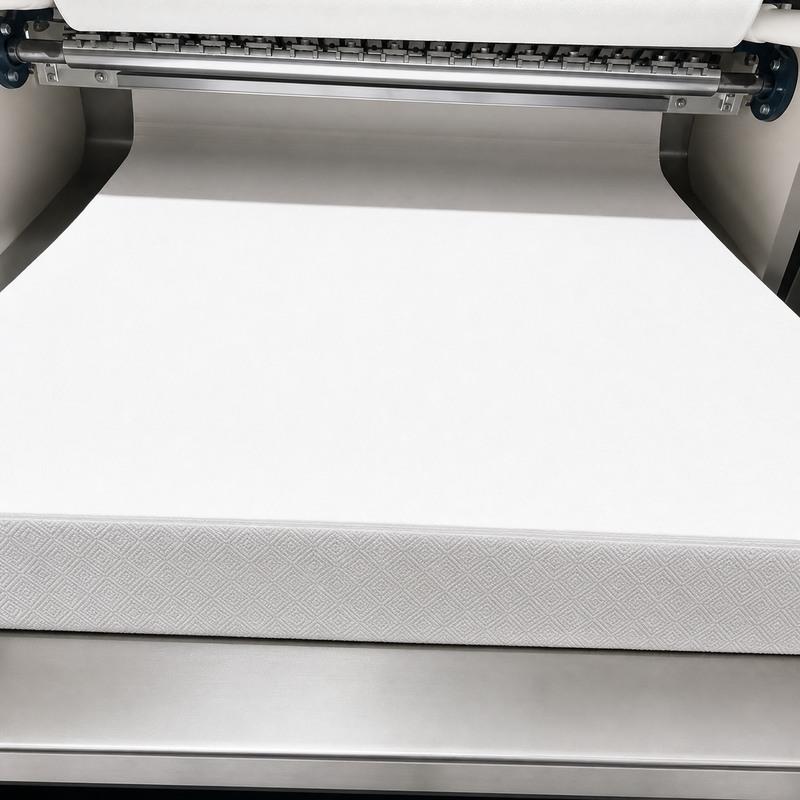

• Automatic folding process delivers accurate and consistent folded products.
• PLC and HMI control system enables easy operation and reliable production.
• Automatic paper-out stop, emergency stop, and safety-door control.
• Optional embossing systems are available for different product requirements.

Optional Configuration for Product Differentiation

• Edge embossing system.
• Steel-to-steel / steel-to-rubber embossing system.
• Glue-laminated embossing system.
• Customized embossing patterns.
• Customized unfolded and folded tissue sizes.

Selection Guide: Information Needed for Quotation

To prepare an accurate quotation and recommend the right configuration, please provide the following information:

• Required finished product type (facial tissue or hand towel)
• Target production speed
• Paper basis weight (g/m²)
• Jumbo roll diameter and width
• Jumbo roll core inside diameter
• Required cutting length
• Embossing pattern requirements
• Factory power supply and frequency
• Factory layout and downstream equipment details

Buyer Questions: Configuration and Operation Planning

When planning a DB-IF-V installation, buyers typically need to confirm how the machine will match their existing line and product mix. The IF configuration is suited for facial tissue production, while the HT configuration targets hand towel output. Final speed depends on the paper quality and the finished format being produced.

For stable operation, confirm that the jumbo roll specifications—diameter, width, and core size—match the machine's unwinding stands. The machine accepts virgin and recycled pulp paper within the supported GSM range. Compressed air at 0.5 MPa must be supplied by the buyer, so verify your factory's air capacity before installation.

Practical Experience: Commissioning and Maintenance

During commissioning, check that the vacuum pump and main motor are correctly connected to the factory power supply (AC 380 V, 50 Hz, 3 phase). Confirm the compressed air supply meets the 0.5 MPa requirement and is dry and clean to protect the pneumatic components.

For routine maintenance, inspect the cutting blades regularly and adjust them according to the tissue paper quality being processed. Keep the folding section clean to prevent paper dust buildup, which can affect folding accuracy. The PLC/HMI system provides diagnostic information, so train operators to read basic alarms and respond to paper-out or safety-door events promptly.

Inquiry and Next Steps

Contact us by WhatsApp or submit the inquiry form for a fast factory response. To help you prepare, review the Tissue Paper Cutting Machine Catalog for related converting equipment, or explore the Facial Tissue Machine section for additional line options.
