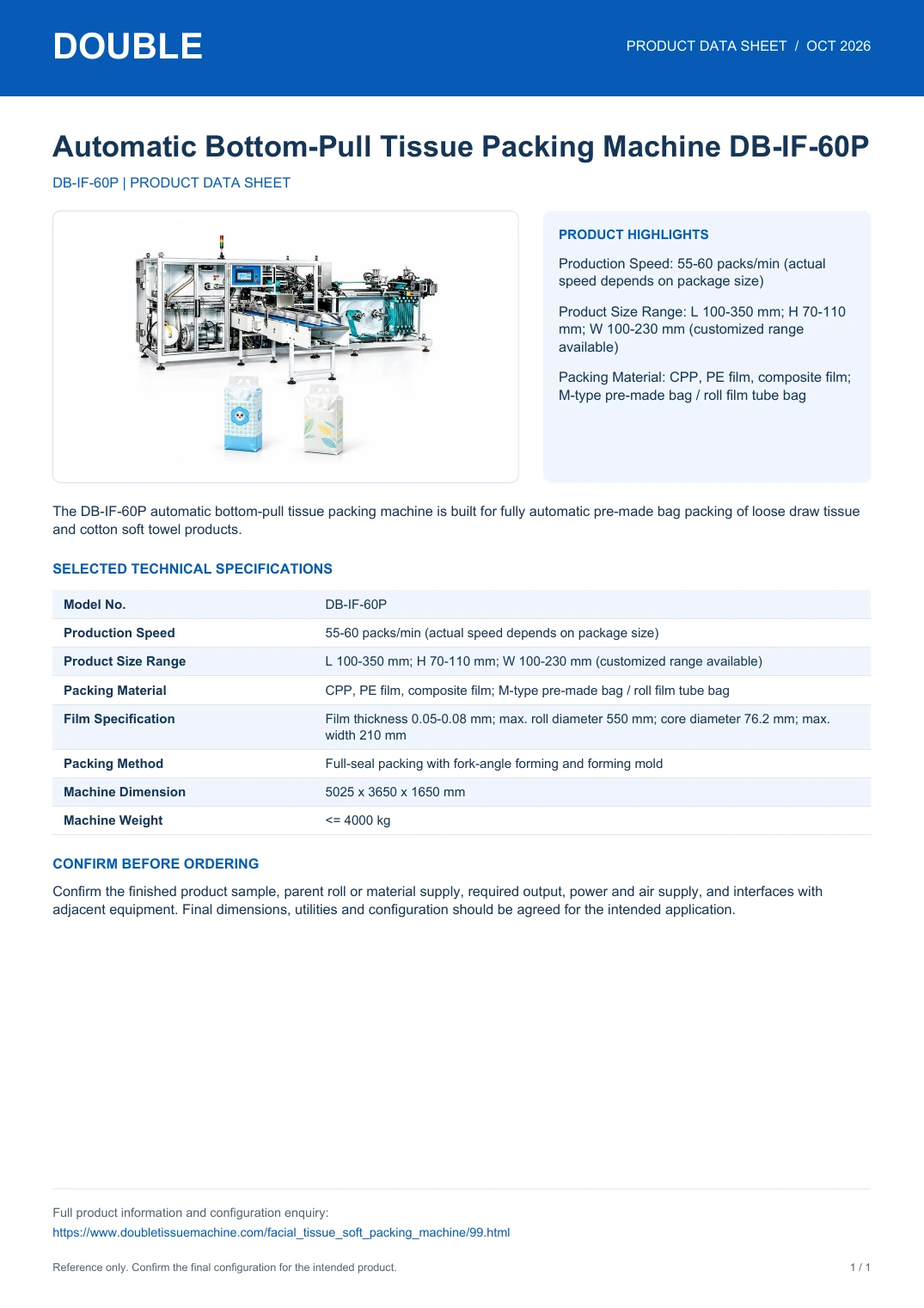

Automatic Bottom-Pull Tissue Packing Machine DB-IF-60P - PDF Data Sheet

The DB-IF-60P automatic bottom-pull tissue packing machine is built for fully automatic pre-made bag packing of loose draw tissue and cotton soft towel products.

Product highlights

  • Production Speed: 55-60 packs/min (actual speed depends on package size)
  • Product Size Range: L 100-350 mm; H 70-110 mm; W 100-230 mm (customized range available)
  • Packing Material: CPP, PE film, composite film; M-type pre-made bag / roll film tube bag

Selected technical specifications

Model No.DB-IF-60P
Production Speed55-60 packs/min (actual speed depends on package size)
Product Size RangeL 100-350 mm; H 70-110 mm; W 100-230 mm (customized range available)
Packing MaterialCPP, PE film, composite film; M-type pre-made bag / roll film tube bag
Film SpecificationFilm thickness 0.05-0.08 mm; max. roll diameter 550 mm; core diameter 76.2 mm; max. width 210 mm
Packing MethodFull-seal packing with fork-angle forming and forming mold
Machine Dimension5025 x 3650 x 1650 mm
Machine Weight<= 4000 kg

Confirm your configuration

Confirm the finished product sample, parent roll or material supply, required output, power and air supply, and interfaces with adjacent equipment. Final dimensions, utilities and configuration should be agreed for the intended application.

View the original DB-IF-60P product page for complete current information.
