Automatic Bottom-Pull Tissue Packing Machine DB-IF-60P

Machine Dimensions / Weight	5025 x 3650 x 1650 mm
Pack / Box Size Range	L 100-350 mm; H 70-110 mm; W 100-230 mm; customized range available
Applicable Tissue Product	Tissue paper products matched to the selected process
Packing Speed	55-60 packs/min, actual speed depends on package size

Get Quote

+86 139 0819 6540

DB-IF-60P Automatic Bottom-Pull Tissue Packing Machine

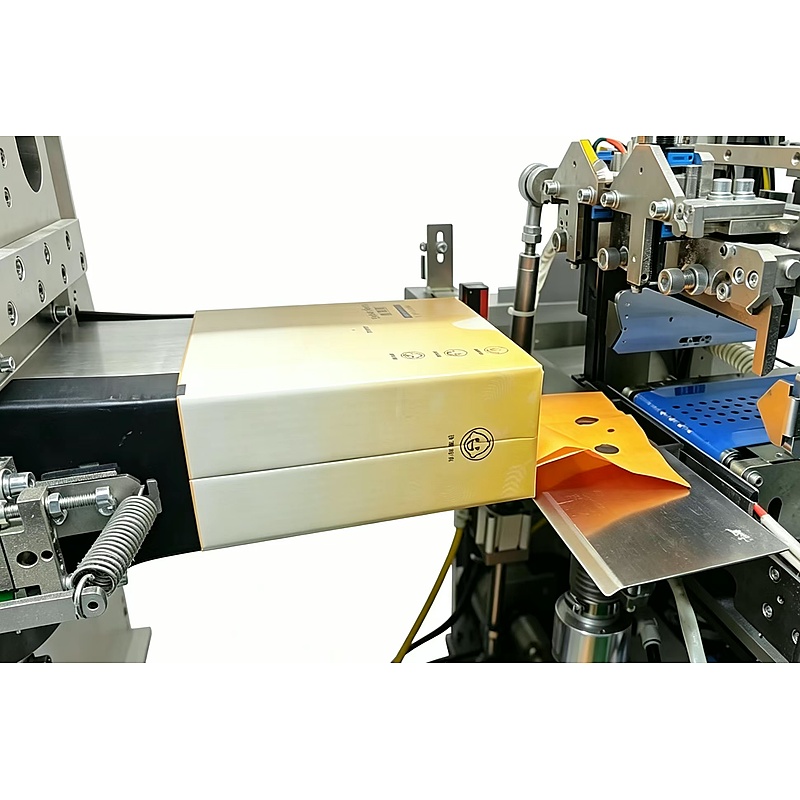

The DB-IF-60P automatic bottom-pull tissue packing machine is built for fully automatic pre-made bag packing of loose draw tissue and cotton soft towel products. It connects front-end feeding with automatic bag making and feeding, bag opening, product inserting, forming, sealing, and finished pack output in one continuous process, so the machine can run as a standalone packing unit or as part of a larger tissue converting and packing line.

Because the machine uses a bottom-pull pack format, the finished pack keeps a stable shape and a clean sealed appearance that is ready for retail display. The forming method and sealing section are matched to the pack style, so buyers should confirm the exact pack format and film specification before final configuration.

Configuration and Automation Value

The DB-IF-60P is designed around a pre-made bag packing principle with fork-angle forming and a forming mold. This gives buyers a practical balance between pack appearance and changeover flexibility. The machine is controlled by a Hechuan servo system with a 24 VDC I/O control circuit, which supports stable motion control during feeding, bag opening, inserting, and sealing.

For buyers planning a new line or upgrading an existing one, the main configuration decisions are the pack size range, the forming mold, the film type and roll specification, and the level of automation required upstream and downstream. Final values for speed, size range, film specification, power, and air supply are listed in the Technical Specifications field and should be confirmed against the actual product sample before ordering.

Operation and Maintenance Considerations

Daily operation focuses on film loading, bag feeding, forming and sealing checks, and finished pack discharge. Maintenance access around the forming and sealing area should be planned into the factory layout so operators can clear jams, replace film rolls, and inspect the sealing section without disrupting upstream equipment.

Buyers should also plan for compressed air supply, power connection, and enough floor space around the machine for film roll handling and finished pack collection. The machine dimensions and weight are given in the Technical Specifications field; layout drawings should be checked against the actual factory floor before installation.

Selection and Quotation Inputs

To prepare an accurate quotation and configuration, please provide the following information:

Input Item	What to Confirm	Why It Matters
Pack format and size	Bottom-draw tissue pack size, pack style, and packing format	Determines forming mold, bag size, and product size range
Film specification	Film material, thickness, roll diameter, and roll width	Affects sealing quality, film feeding, and roll handling
Speed and feeding	Required packing speed and upstream feeding method	Sets line matching and buffer requirements
Printing and control	Printing, film correction, and alarm requirements	Defines optional configuration and control scope
Utilities and layout	Voltage, air supply, floor space, and line connection	Confirms installation conditions and downstream interface

Buyer Questions

Can the DB-IF-60P run different pack sizes?

The machine supports a product size range and customized forming molds. Buyers should provide the exact pack size and format so the correct mold and bag specification can be confirmed.

Which film materials can be used?

The machine is designed for CPP, PE film, and composite film in M-type pre-made bag or roll film tube bag format. Film thickness and roll specification should be confirmed against the Technical Specifications field and the actual product sample.

Can the machine connect to upstream and downstream equipment?

Yes, the DB-IF-60P can be integrated with upstream tissue converting equipment and downstream packing lines. The exact interface depends on the feeding method and line layout, which should be confirmed during project planning.

What information is needed before quotation?

Please provide the pack size and format, film specification, required speed, upstream feeding method, printing and control requirements, and utility and layout conditions. This allows the factory to confirm the correct configuration.

Related Equipment and Resources

For buyers comparing soft packing options, the Facial Tissue Soft Packing Machine range covers related models for different pack formats and output levels. A full overview of packing equipment is available in the Tissue Paper Packing Machine Catalog.

Contact us by WhatsApp or submit the inquiry form for a fast factory response. Please include your pack size, film specification, and target output so the factory can confirm the correct configuration.

DB-IF-60P Automatic Bottom-Pull Tissue Packing Machine — Technical Specifications

Model No.	DB-IF-60P
Production Speed	55–60 packs/min (actual speed depends on package size)
Product Size Range	L 100–350 mm; H 70–110 mm; W 100–230 mm (customized range available)
Packing Material	CPP, PE film, composite film; M-type pre-made bag / roll film tube bag
Film Specification	Film thickness 0.05–0.08 mm; max. roll diameter 550 mm; core diameter 76.2 mm; max. width 210 mm
Packing Method	Full-seal packing with fork-angle forming and forming mold
Machine Dimension	5025 × 3650 × 1650 mm
Machine Weight	≤ 4000 kg
Power & Air	380 V / 50 Hz; total power 24 kW; compressed air pressure ≥ 0.5 MPa
Control System	Hechuan servo control with 24 VDC I/O control circuit

Final configuration depends on the finished tissue pack format, parent-roll or incoming product specification, target output, automation level, downstream connection, available utilities, and floor space. For the full machine range, see the Tissue Paper Packing Machine Catalog, or review the DB-IF-180P Automatic Facial Tissue Soft Packing Machine for a higher-output soft packing option. Contact us by WhatsApp or submit the inquiry form for a fast factory response.
