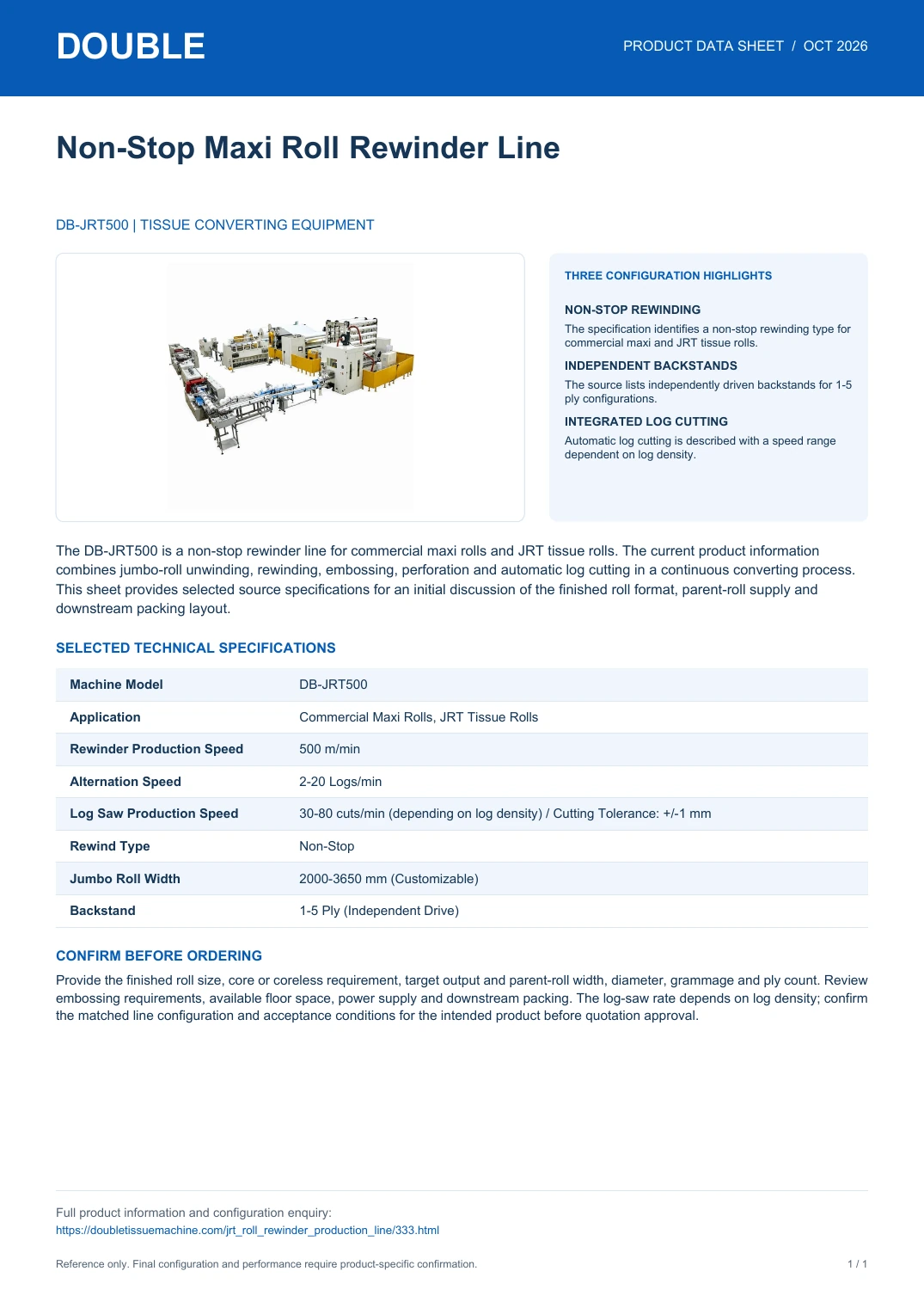

DB-JRT500 Maxi Roll Rewinder Line - PDF Data Sheet

The DB-JRT500 is a non-stop rewinder line for commercial maxi rolls and JRT tissue rolls. The current product information combines jumbo-roll unwinding, rewinding, embossing, perforation and automatic log cutting in a continuous converting process. This sheet provides selected source specifications for an initial discussion of the finished roll format, parent-roll supply and downstream packing layout.

What the data sheet covers

• Non-stop rewinding: The specification identifies a non-stop rewinding type for commercial maxi and JRT tissue rolls.
• Independent backstands: The source lists independently driven backstands for 1-5 ply configurations.
• Integrated log cutting: Automatic log cutting is described with a speed range dependent on log density.

Key source specifications

• Application: Commercial Maxi Rolls, JRT Tissue Rolls
• Rewinder Production Speed: 500 m/min
• Alternation Speed: 2-20 Logs/min
• Log Saw Production Speed: 30-80 cuts/min (depending on log density) / Cutting Tolerance: +/-1 mm

Confirm your configuration

Provide the finished roll size, core or coreless requirement, target output and parent-roll width, diameter, grammage and ply count. Review embossing requirements, available floor space, power supply and downstream packing. The log-saw rate depends on log density; confirm the matched line configuration and acceptance conditions for the intended product before quotation approval.

View the original DB-JRT500 product page for the complete current information.
