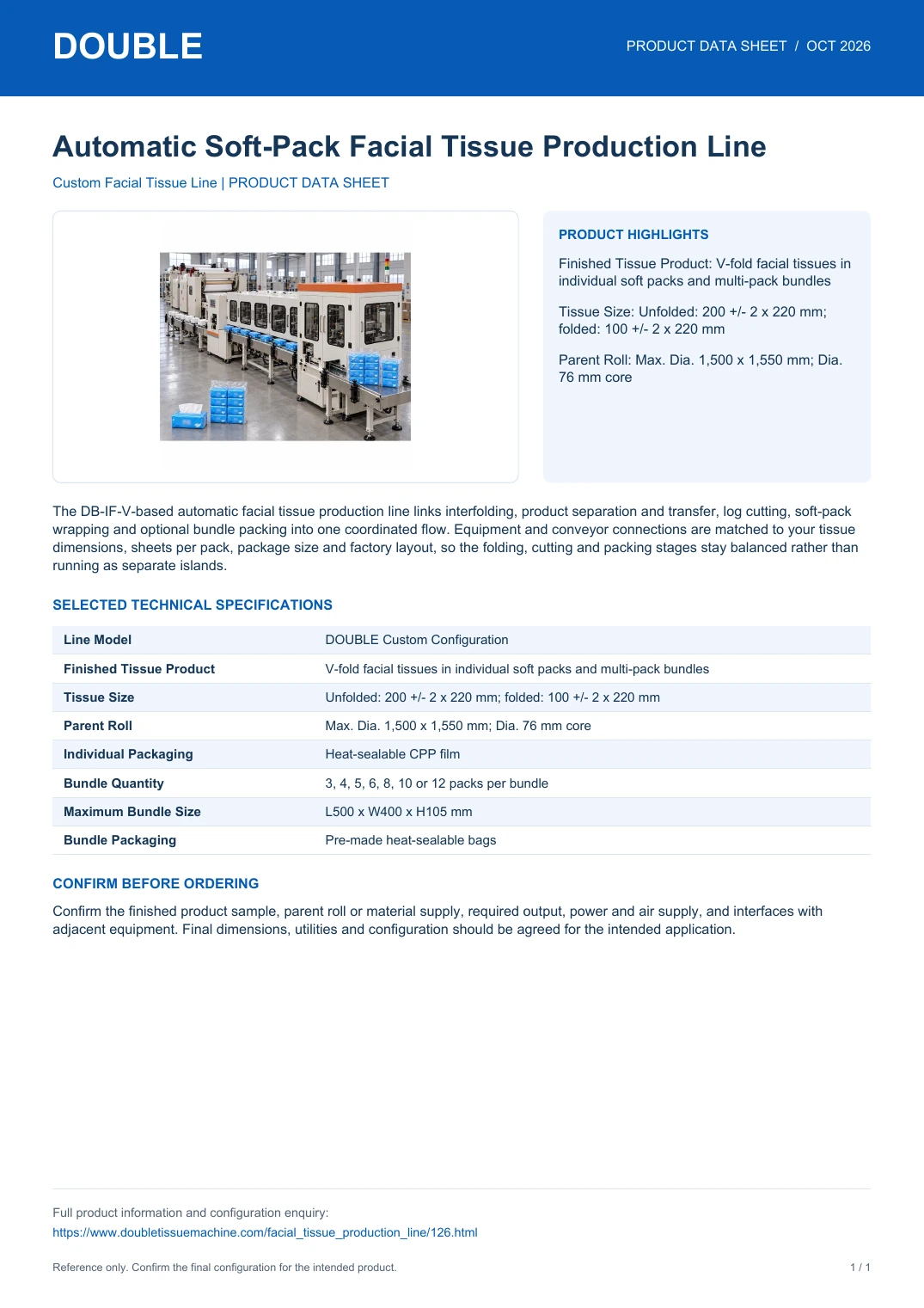

Automatic Soft-Pack Facial Tissue Production Line - PDF Data Sheet

The DB-IF-V-based automatic facial tissue production line links interfolding, product separation and transfer, log cutting, soft-pack wrapping and optional bundle packing into one coordinated flow. Equipment and conveyor connections are matched to your tissue dimensions, sheets per pack, package size and factory layout, so the folding, cutting and packing stages stay balanced rather than running as separate islands.

Product highlights

• Finished Tissue Product: V-fold facial tissues in individual soft packs and multi-pack bundles
• Tissue Size: Unfolded: 200 +/- 2 x 220 mm; folded: 100 +/- 2 x 220 mm
• Parent Roll: Max. Dia. 1,500 x 1,550 mm; Dia. 76 mm core

Selected technical specifications

Confirm your configuration

Confirm the finished product sample, parent roll or material supply, required output, power and air supply, and interfaces with adjacent equipment. Final dimensions, utilities and configuration should be agreed for the intended application.

View the original Custom Facial Tissue Line product page for complete current information.
