An integrated facial tissue production line combining interfolding, log separation, cutting, individual soft-pack wrapping and optional multi-pack bundling, configured to your tiss
How the DB-IF-V Facial Tissue Line Runs from Parent Roll to Sealed Soft Pack
The DB-IF-V-based automatic facial tissue production line links interfolding, product separation and transfer, log cutting, soft-pack wrapping and optional bundle packing into one coordinated flow. Equipment and conveyor connections are matched to your tissue dimensions, sheets per pack, package size and factory layout, so the folding, cutting and packing stages stay balanced rather than running as separate islands.
Working Sequence and Stage Coordination

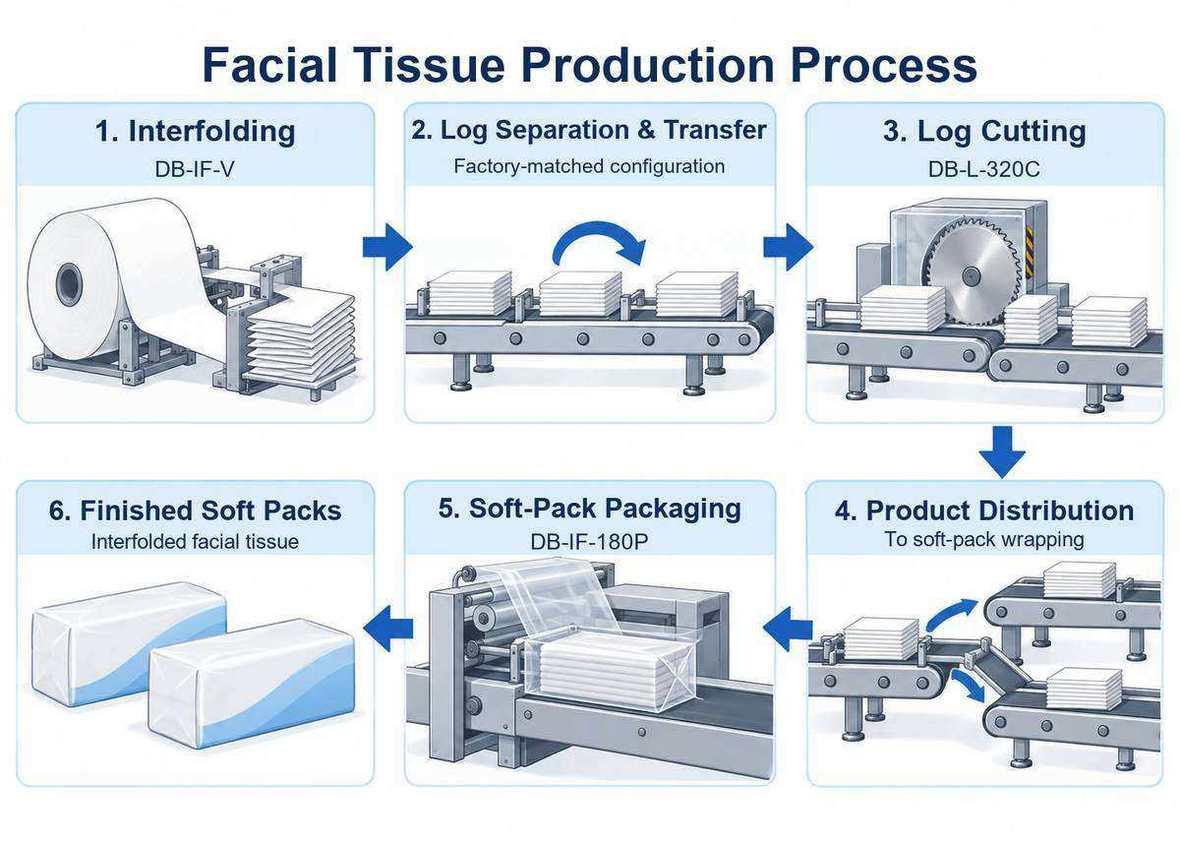

The line follows a defined sequence: paper feeding and interfolding, tissue-log separation and transfer, log cutting, product distribution, individual soft-pack wrapping, optional bundle packing and finished-pack conveying. Each stage is set to keep product flow organized and to match the agreed production target. Because the stages are mechanically linked, the practical output of the line is governed by the slowest stage in the chain, not by any single machine running at its own maximum.
Main Equipment and Its Role in the Line
Equipment
Main Function
DB-IF-V
Unwinds, slits and interfolds parent tissue rolls to produce continuous facial tissue logs; embossing is included where selected.
Separation and Transfer System
Separates, positions and transfers folded tissue logs for downstream cutting.
DB-L-320C
Cuts folded facial tissue logs into the required single-pack length.
Distribution System
Routes cut facial tissue stacks to the agreed packing positions.
DB-IF-180P
Wraps individual facial tissue stacks in film to produce finished soft packs.
DB-IF-30P — Optional
Groups multiple soft packs and applies an outer bundle package for handling and transportation.
Finished-Pack Conveyor
Transfers completed packs for collection or further handling.
The separation and transfer section is confirmed against the factory proposal. Where a different handling configuration is required, the transfer and distribution sections are adjusted accordingly.

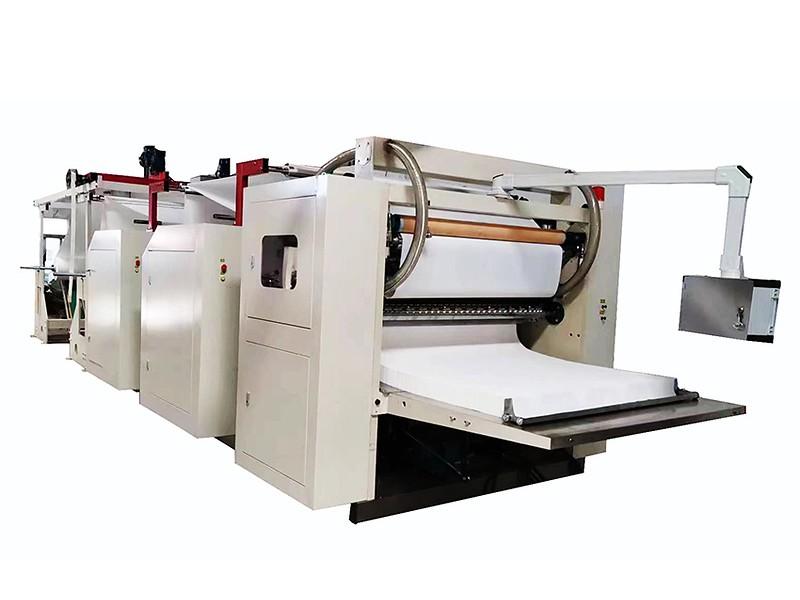

DB-IF-V Facial Tissue Machine
Confirmed machine parameters for the DB-IF-V, including folding output, finished product size, jumbo roll specification, cutting method and installed power, are listed in the Technical Specifications field. Final values are confirmed against the factory proposal.

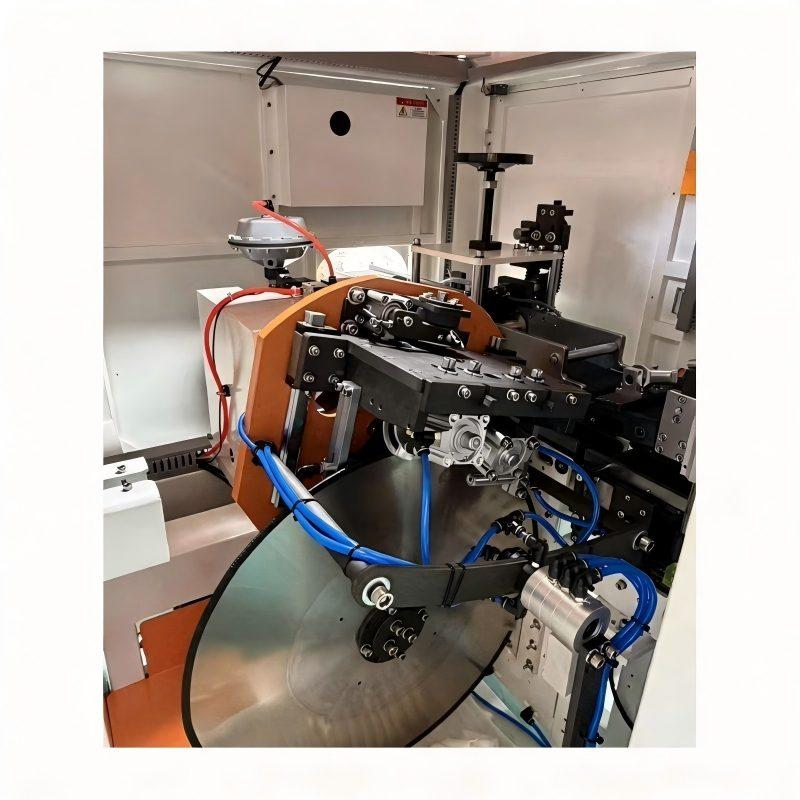

DB-L-320C Facial Tissue Log Saw
The DB-L-320C cuts soft-pack facial tissue logs to the required single-pack length. Its cutting speed, cut size range, cutting accuracy, feeding system, control system and power and air requirements are listed in the Technical Specifications field.

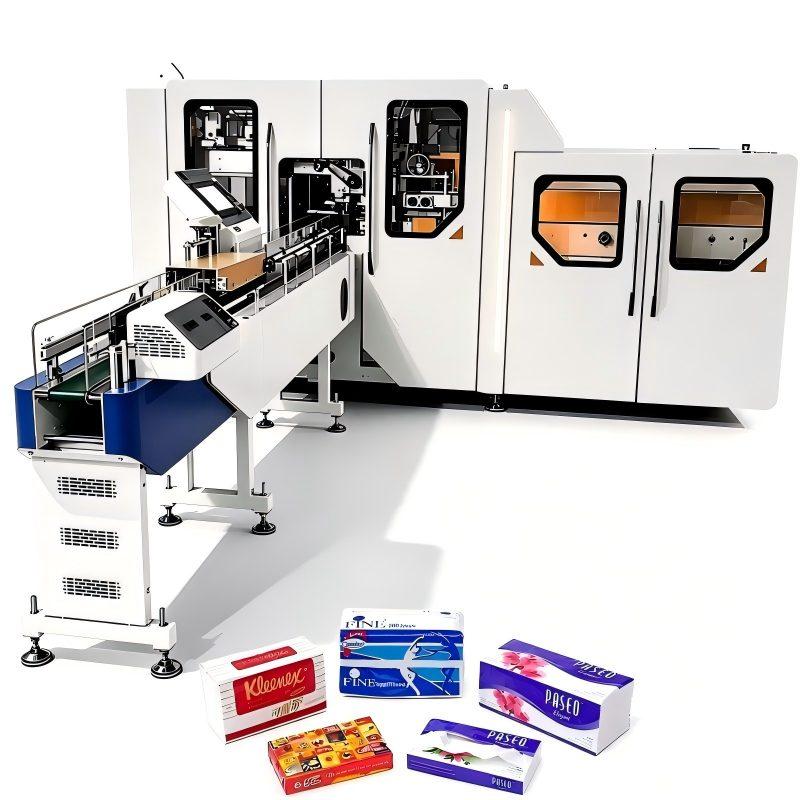

The DB-IF-180P wraps individual facial tissue stacks in film to produce finished soft packs. Its packing speed, product size range, packing material, film roll size, control mode, tear opening type, machine dimensions, weight and power and air requirements are listed in the Technical Specifications field.
Configuration Choices That Shape the Line
Before the line is finalized, several configuration decisions determine how the folding, cutting and packing stages connect:
Interfolding and cutting match: the folding unit and the log saw are selected so that tissue format, sheet count and cut length suit your finished facial tissue pack.
Separation and transfer arrangement: the handling method between the folding and cutting stages is matched to the approved tissue sample and required production flow.
Packing-machine quantity: the number of packing units depends on the balance between folding output and packing speed, and on the package size range you intend to run.
Bundle-packing requirement: the DB-IF-30P is included when your finished product requires multi-pack or outer bundle packaging.
Utilities and power: power supply, compressed air and other services are confirmed with the final configuration.
Confirmed machine parameters, including folding output, cutting speed, packing speed, packing size range and installed power, are listed in the Technical Specifications field. Final values are confirmed against the factory proposal.
Finished Products and Applications
The line produces interfolded facial tissue in sealed soft packs for retail, household and away-from-home applications. Tissue dimensions, fold pattern, sheet count per pack and package specification are confirmed using your sample, so the finished pack matches your intended sales format and distribution requirements.
Operating and Maintenance Notes
Stable running depends on consistent parent-roll quality, correct web tension at the folding stage, and clean separation and transfer of tissue logs into the cutting and packing sections. Operators should have clear access to the folding unit, the cutting unit and the packing unit for routine checks, film changes and jam clearing. Planning spare parts and wear items for the cutting and sealing sections before commissioning helps reduce unplanned stops once the line is in production.
Buyer Questions Before Quotation
What information should I provide to get an accurate line proposal?
Send your facial tissue sample or finished tissue dimensions, fold pattern, sheet count per pack, package size, target output, factory layout and local voltage. These inputs let us match the folding, cutting, transfer and packing stages correctly.
How is the line output determined?
Finished-pack output depends on sheet count per pack and on the balance between the connected stages. The folding and packing units each have their own working range, and the practical line output is set by how those stages are matched to your product.
Can the line be adapted to a different facial tissue format?
Tissue dimensions, fold pattern, sheet count and packaging format are confirmed using your sample. Where a different format is required, the cutting configuration and transfer sections are adjusted accordingly.
Is the DB-IF-30P bundle packing machine required?
No. The DB-IF-30P is optional and is included when multiple individual soft packs require an outer bundle package for retail, storage or transportation.
What is confirmed before the order is placed?
Layout, separation and transfer arrangement, cutting configuration, packing-machine quantity, optional bundle packing and utilities are confirmed before order. Final technical values are agreed against the factory proposal.
Send us your facial tissue sample, package specification, output target and factory layout, and we will prepare a matched folding, cutting, transfer and soft-packing solution. Contact us by WhatsApp or submit the inquiry form for a fast factory response.
Included, optional, and customer-supplied modules are confirmed per project; final scope is issued with the approved line layout
Utilities & Site Conditions
To be confirmed according to the selected configuration, local voltage, and factory floor plan
Final technical values are issued with the confirmed line configuration. For a detailed quotation and layout drawing, please provide your finished tissue format, target output, and factory floor plan. View the Facial Tissue Production Line or Download the Tissue Paper Cutting Machine Catalog. Contact us by WhatsApp or submit the inquiry form for a fast factory response.
