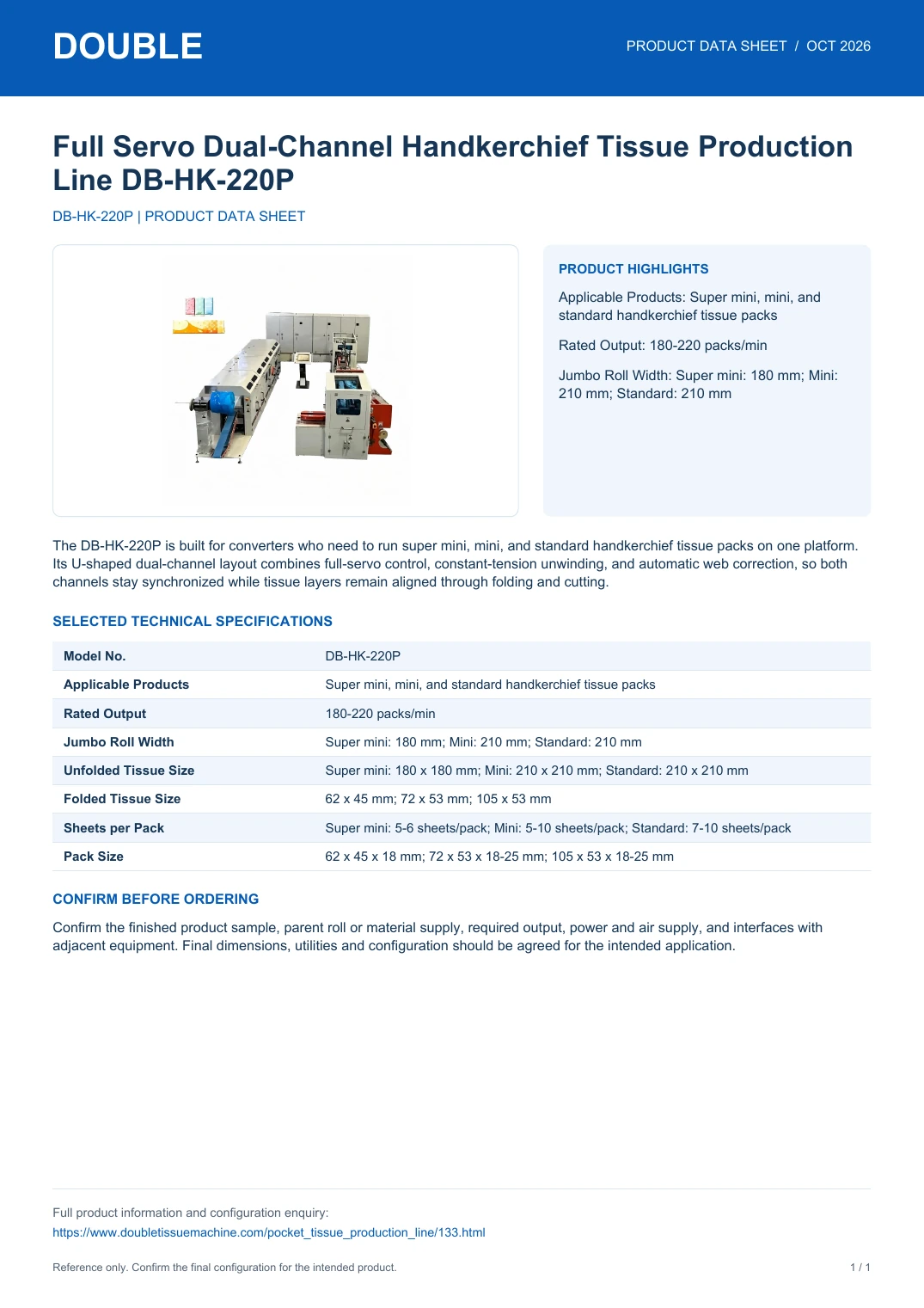

Full Servo Dual-Channel Handkerchief Tissue Production Line DB-HK-220P - PDF Data Sheet

The DB-HK-220P is built for converters who need to run super mini, mini, and standard handkerchief tissue packs on one platform. Its U-shaped dual-channel layout combines full-servo control, constant-tension unwinding, and automatic web correction, so both channels stay synchronized while tissue layers remain aligned through folding and cutting.

Product highlights

  • Applicable Products: Super mini, mini, and standard handkerchief tissue packs
  • Rated Output: 180-220 packs/min
  • Jumbo Roll Width: Super mini: 180 mm; Mini: 210 mm; Standard: 210 mm

Selected technical specifications

Model No.DB-HK-220P
Applicable ProductsSuper mini, mini, and standard handkerchief tissue packs
Rated Output180-220 packs/min
Jumbo Roll WidthSuper mini: 180 mm; Mini: 210 mm; Standard: 210 mm
Unfolded Tissue SizeSuper mini: 180 x 180 mm; Mini: 210 x 210 mm; Standard: 210 x 210 mm
Folded Tissue Size62 x 45 mm; 72 x 53 mm; 105 x 53 mm
Sheets per PackSuper mini: 5-6 sheets/pack; Mini: 5-10 sheets/pack; Standard: 7-10 sheets/pack
Pack Size62 x 45 x 18 mm; 72 x 53 x 18-25 mm; 105 x 53 x 18-25 mm

Confirm your configuration

Confirm the finished product sample, parent roll or material supply, required output, power and air supply, and interfaces with adjacent equipment. Final dimensions, utilities and configuration should be agreed for the intended application.

View the original DB-HK-220P product page for complete current information.
