C-Fold Hand Towel Machine Workshop Photos and Equipment Layout

These workshop photos show the DB-C-250 C-fold hand towel machine from several angles. Overall and close-up views highlight the equipment layout, paper-feed components and folding area, giving buyers a practical look at the machine in a workshop setting.

What These C-Fold Hand Towel Machine Workshop Photos Show

Buying a C-fold hand towel machine from a catalog page or a specification sheet only tells part of the story. Workshop photos help buyers judge how the machine is actually built, how much floor space it occupies, and how the paper path is arranged before a purchase decision is made. The images on this page were taken in a working workshop, so they reflect the machine as it is assembled and positioned rather than a staged studio render.

For procurement teams, engineers, and distributors comparing hand towel folding equipment, this kind of visual reference supports several practical questions: how the parent roll is fed into the machine, where the folding section sits in relation to the drive and control area, and how much clearance is left around the frame for operation and maintenance access.

How to Read the Photos Before You Compare Machines

Workshop photos are most useful when you know what to look for. The following points are worth checking against your own factory conditions and against any other machine you are evaluating.

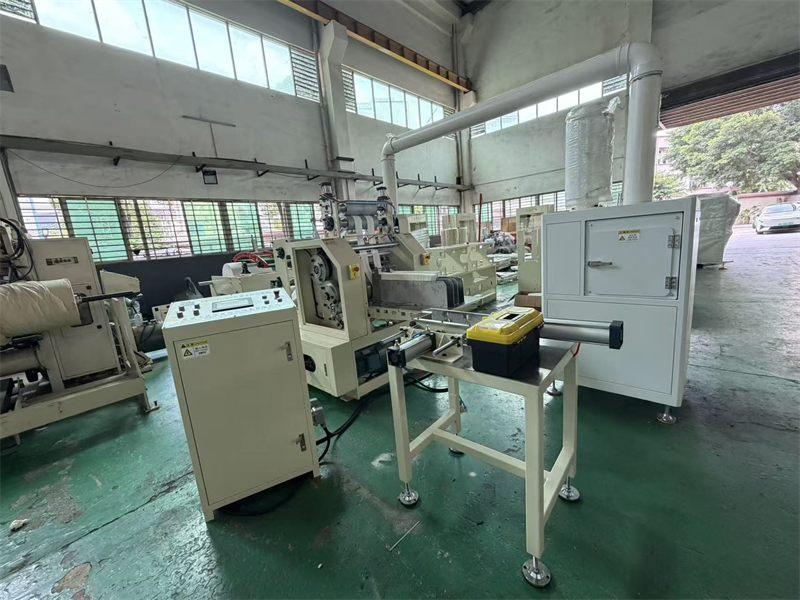

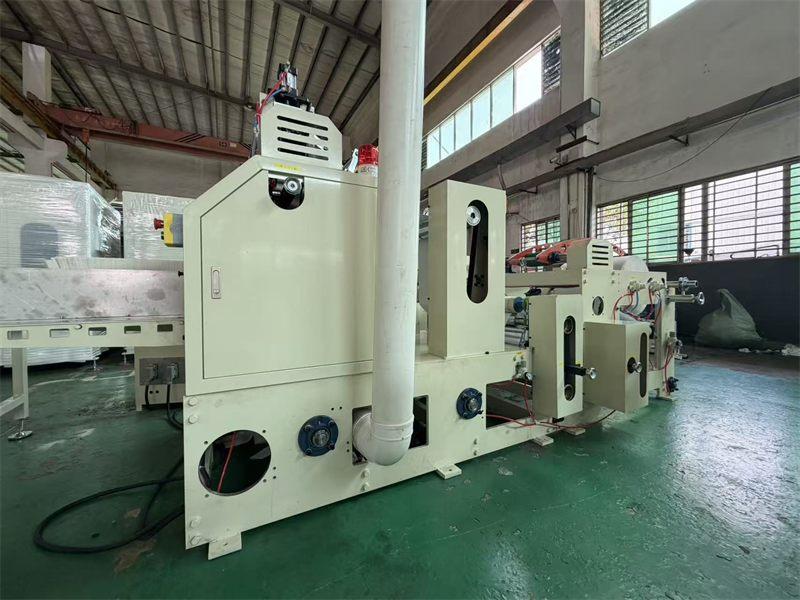

• Machine layout and footprint: note how the main frame, drive section, and folding area are arranged, and whether the overall shape fits the space you have reserved on the production floor.

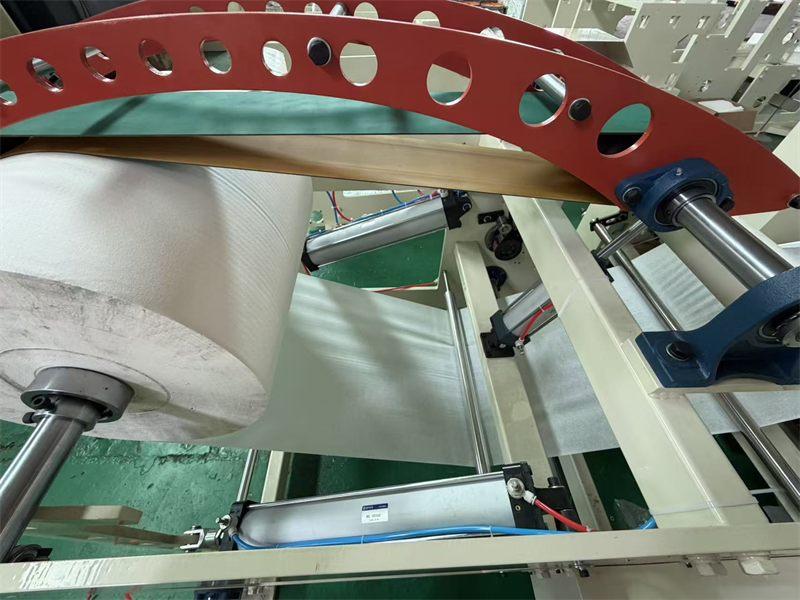

• Paper-feed components: the feed section determines how consistently the parent roll is unwound and guided into the folding unit, which affects web tension and folding accuracy.

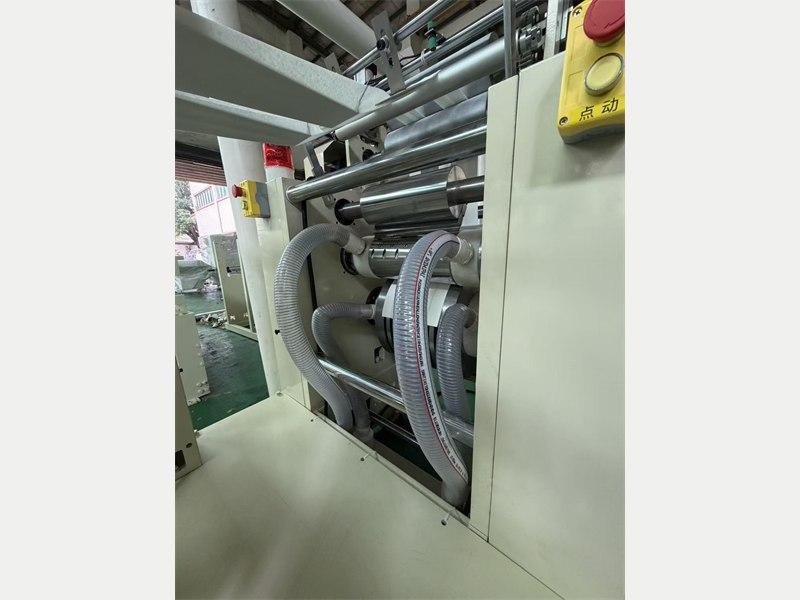

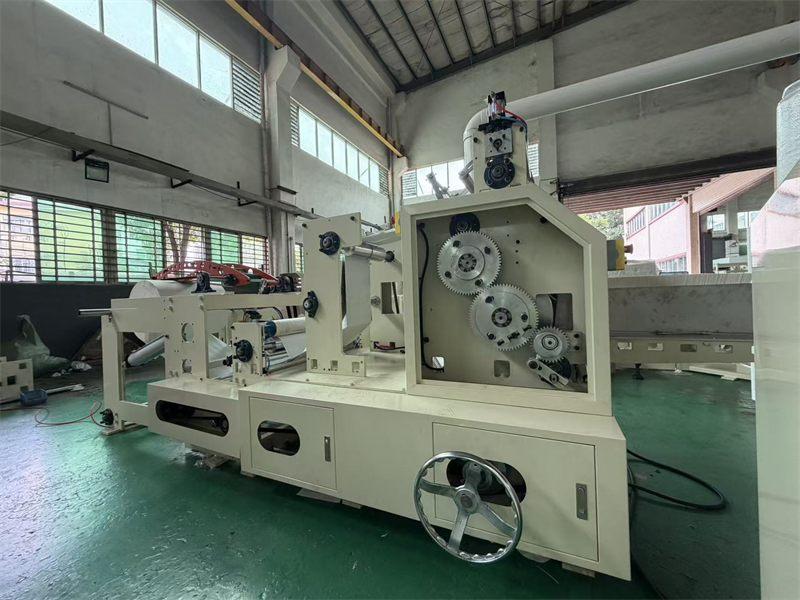

• Folding area: the folding rollers and transfer section are the core of a C-fold hand towel machine, so close-up views help you understand the mechanism and the access available for adjustment.
• Maintenance access: check whether guards, covers, and service points can be reached without dismantling adjacent equipment.
• Workshop environment: the surrounding floor, utilities, and clearances in the photos give a realistic sense of installation requirements.
•
•

Why Workshop Photos Matter for Hand Towel Machine Selection

A C-fold hand towel machine sits inside a wider production flow. Depending on the configuration, it may be fed from a parent roll, discharge folded towels to a counting and stacking section, and connect downstream to a packing machine. Seeing the machine in a workshop setting helps buyers picture where it will sit in their own line and what upstream and downstream equipment needs to be planned around it.

Photos also help narrow the shortlist. If the layout, working width, or automation level visible in the images does not match your target output or available floor space, that is useful information before you request a quotation. Buyers who arrive at a technical discussion with a clear idea of the machine layout usually get a faster and more accurate configuration proposal.

Information to Prepare Before Requesting a Configuration

To move from photos to a concrete proposal, it helps to have the following details ready. These are the factors that most often change the recommended machine configuration.

• Finished product type and folded towel size, such as C-fold hand towels.
• Parent roll or input paper specification, including width and gsm.
• Target output or working speed required for your production plan.
• Required automation level, from a standalone folding machine to a connected production line.
• Available floor space and factory layout, including access for installation.
• Utility conditions such as power supply and air supply available on site.
• Downstream requirements, such as counting, stacking, or packing.

Next Step

If these workshop views match the type of hand towel folding equipment you are planning to install, the next step is to compare the machine against your own product size, target output, and floor layout. You can review the DB-C-250 automatic C-fold hand towel paper folding machine for the model shown here, or browse the wider hand towel paper machine range to see how different configurations compare.

Send us your finished towel size, parent roll specification, target output, and factory layout, and our engineering team can advise on a suitable configuration and provide the technical details you need for project planning.
