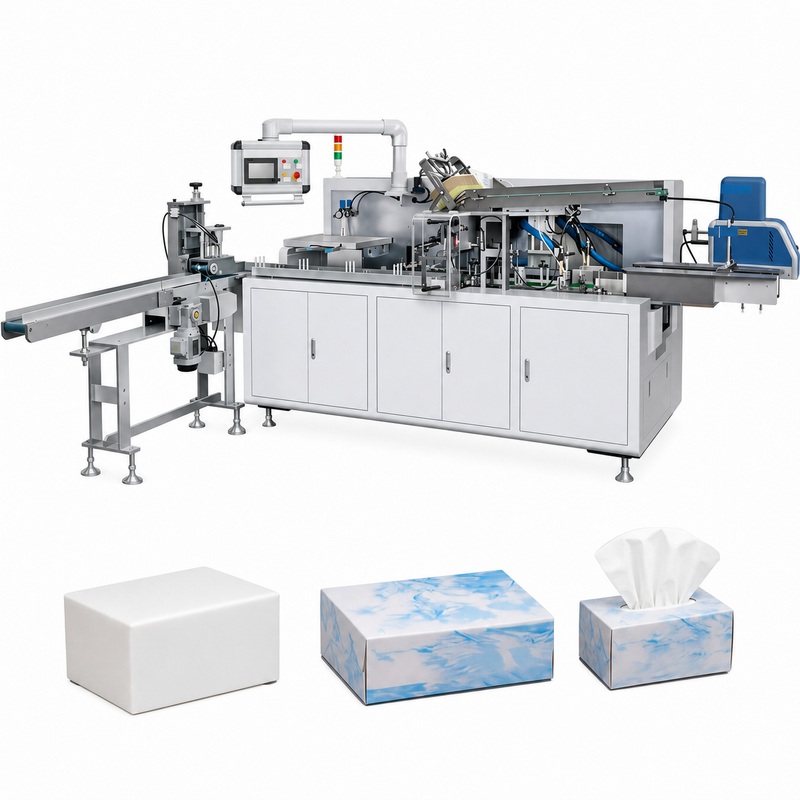

DB-BF-150B High-Speed Automatic Facial Tissue Box Packing Machine

DB-BF-150B High-Speed Automatic Facial Tissue Box Packing Machine

The DB-BF-150B is an automatic box packing solution for facial tissue, square tissue, pocket tissue, handkerchief tissue, and cotton soft tissue. It handles the complete cycle: tissue feeding, carton opening, product loading, hot melt glue sealing, and finished box output. The machine is designed for box sizes from L100–240 × W100–120 × H30–90 mm and operates at a packing speed of 60–130 boxes/min.

Key Features

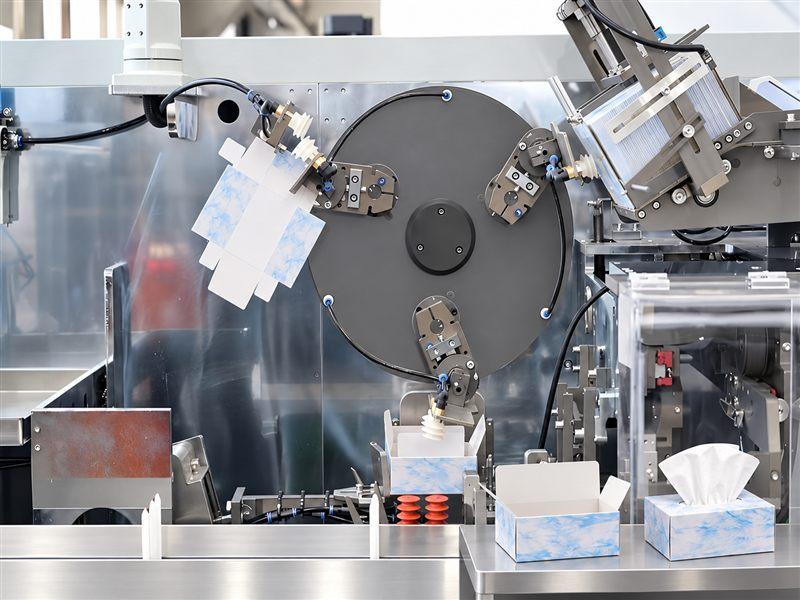

• Rotary suction cup carton feeding supports stable high-speed operation.

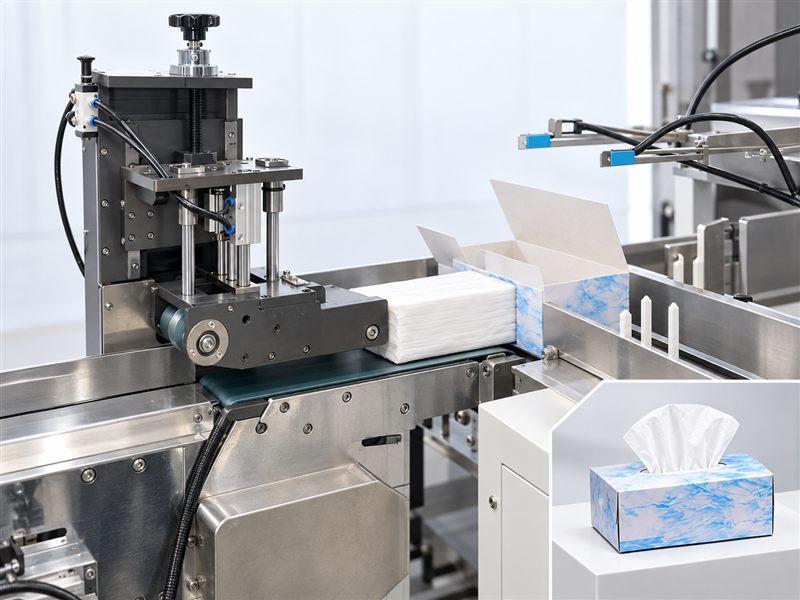

• Fully automatic sequence: feeding, carton opening, product loading, glue application, and box sealing.
• Servo motor, PLC control, and touchscreen HMI simplify operation and monitoring.
• Photoelectric detection helps reduce empty carton waste.
• Automatic stop and overload protection improve machine safety.

Optional Configuration

• Box size, carton board quality, and final box style can be confirmed against buyer samples.
• Semi-cover or full-cover format and product-to-box height matching can be adjusted.
• Hot melt glue application and nozzle configuration can be finalized before production.
• An upturning safety protective cover is available on request.
• Upstream line connection and production line layout can be discussed for integration.

Selection Guide

To prepare an accurate quotation and configuration, please provide the following details:

• Tissue product type and tissue pack size.
• Carton size, carton board quality, and final box style.
• Required packing speed and production capacity.
• Semi-cover/full-cover and product-to-box height requirements.
• Factory layout, voltage, air pressure, and upstream line connection requirements.
