Toilet Paper Rewinding Solution in Poland

Non-Stop Toilet Paper Rewinder Line

Project Year: 2022
Application: Toilet Paper Production
Equipment: Non-Stop Toilet Paper Rewinding Line

Customer Background

In 2022, a tissue manufacturer in Poland sought to improve the efficiency and stability of its toilet paper production.

The customer required a reliable rewinding solution for continuous production, with the flexibility to handle different finished toilet paper roll formats. Stable web tension, consistent roll formation, and reduced downtime were key considerations when selecting the equipment.

Customer Requirements

The Polish customer was mainly looking for:

• Continuous toilet paper rewinding with reduced downtime.
• Stable production of finished toilet paper rolls.
• Support for both cored and coreless roll production.
• Reliable web tension control for multi-ply tissue.
• Consistent roll density and finished roll shape.
• Flexible configuration for different toilet paper specifications.
• A machine platform that could support future product adjustments.

Our Solution

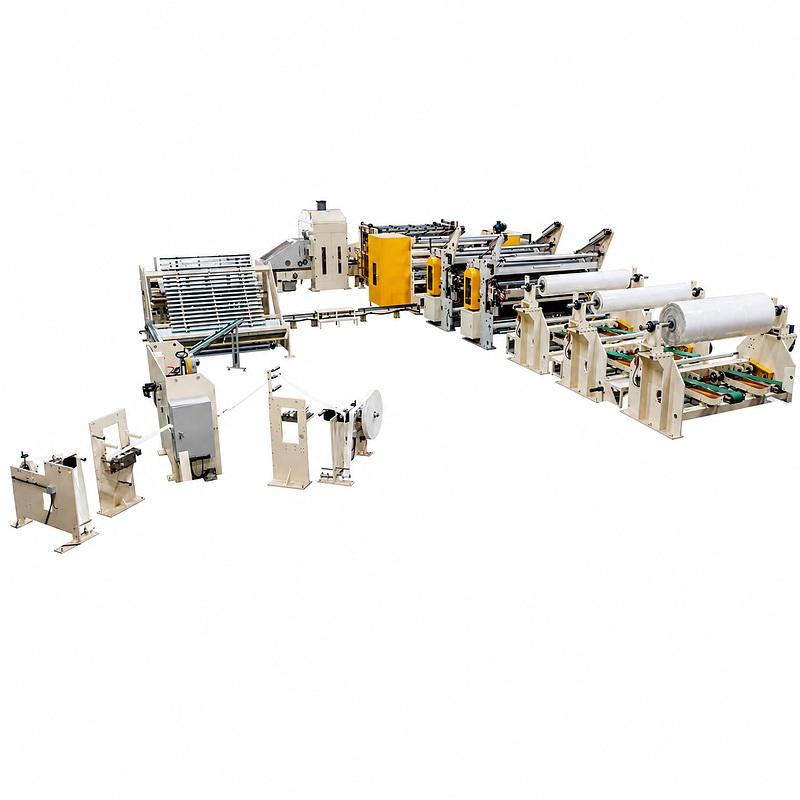

Based on the customer's production requirements, we supplied a non-stop toilet paper rewinding line designed for continuous tissue roll production.

The non-stop rewinding system allows finished logs to be changed without stopping the main production process, helping reduce production interruptions and improve operating efficiency.

The system supports both cored and coreless toilet paper rolls. For coreless production, the vacuum suction system helps maintain firm and uniform roll formation, which is particularly important for achieving consistent roll density and shape.

Independent motor drives provide stable control of the main working sections and help maintain consistent web tension throughout the rewinding process.

The modular design also gives the customer flexibility to adjust the configuration according to different toilet paper product requirements.

Installation & Commissioning

During installation and commissioning, our technical team focused on unwind alignment, web tension adjustment, perforation settings, and finished roll formation.

For multi-ply tissue, the tension of each paper layer was carefully adjusted to ensure stable web running and consistent roll formation. This helped reduce issues such as telescoping and loose rolls during operation.

For coreless toilet paper production, the vacuum suction pressure and finished roll diameter were also checked and adjusted to achieve the required roll firmness and shape.

After commissioning, the equipment was put into regular toilet paper production.

Project Results

The project provided the Polish customer with a more stable and flexible solution for toilet paper roll production.

Reduced Downtime
The non-stop rewinding process helped reduce interruptions during finished log changes and supported more continuous production.

Flexible Roll Production
The system can accommodate both cored and coreless toilet paper rolls, giving the customer greater flexibility in finished product formats.

Consistent Roll Quality
Stable web tension control and optimized rewinding parameters helped maintain consistent roll density, shape, and perforation quality.

Improved Production Flexibility
The modular equipment configuration allows production parameters to be adjusted according to different toilet paper specifications.

Project Summary

In 2022, a tissue manufacturer in Poland invested in our non-stop toilet paper rewinding solution to improve production continuity and finished roll quality.

The solution combined continuous rewinding, cored and coreless roll compatibility, stable tension control, and flexible configuration to meet the customer's production requirements.

The project helped the customer establish a more efficient and reliable toilet paper rewinding process while providing sufficient flexibility for future product development.
