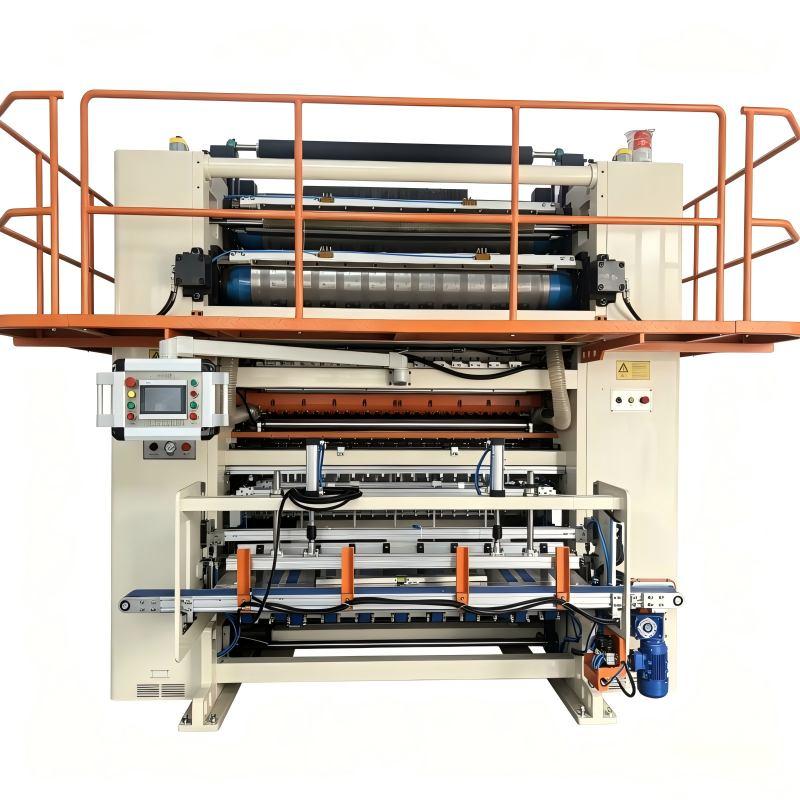

DB-F-V-200 V-Fold Tissue Interfolder for Facial Tissue Converting Lines

DB-F-V-200 V-Fold Tissue Interfolder for Facial Tissue Converting Lines

The DB-F-V-200 V-Fold tissue interfolder is built for tissue converting lines that need stable unwinding, V-fold folding, counting, and finished product output. It is suited for facial tissue and bottom-pull tissue production where consistent fold quality and reliable line speed matter.

The machine supports both front discharge and side discharge, giving converters flexibility in production layout and downstream connection to cutting or packing equipment.

Key Features

• V-fold tissue folding design with front discharge and side discharge options.
• Two independent unwinding units with frequency-controlled tension adjustment.
• Adjustable folding roller and traction roller gaps for different production requirements.
• PLC control with servo drives, frequency converter, and HMI touchscreen operation.
• Automatic counting function and paper-break stop protection.
• Pneumatic turning platform with optional half-fold output configuration.

Optional Configuration

• Half-fold output according to finished product style.
• Front or side discharge layout configuration.
• Upstream unwinding and downstream cutting or packing connection.
• Product specification adjustment according to folding size and output direction.
• Electrical configuration for export market requirements.

Selection Guide

To prepare an accurate quotation and line configuration, please provide the following information:

• Product type and application.
• Folding type and folding size.
• Required speed and output direction.
• Parent roll width, GSM, and specifications.
• Power supply and downstream connection requirements.
