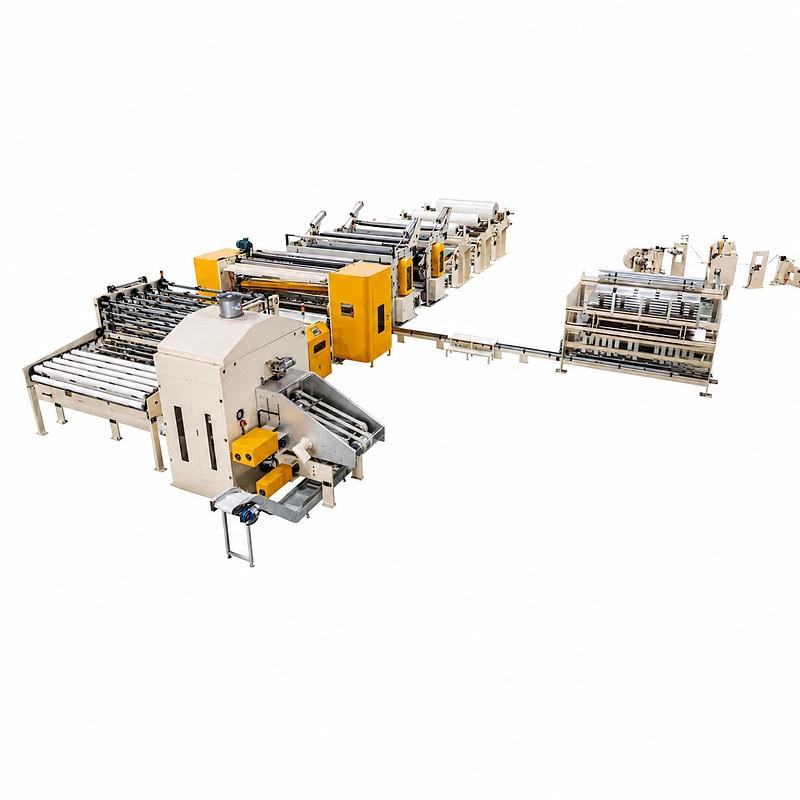

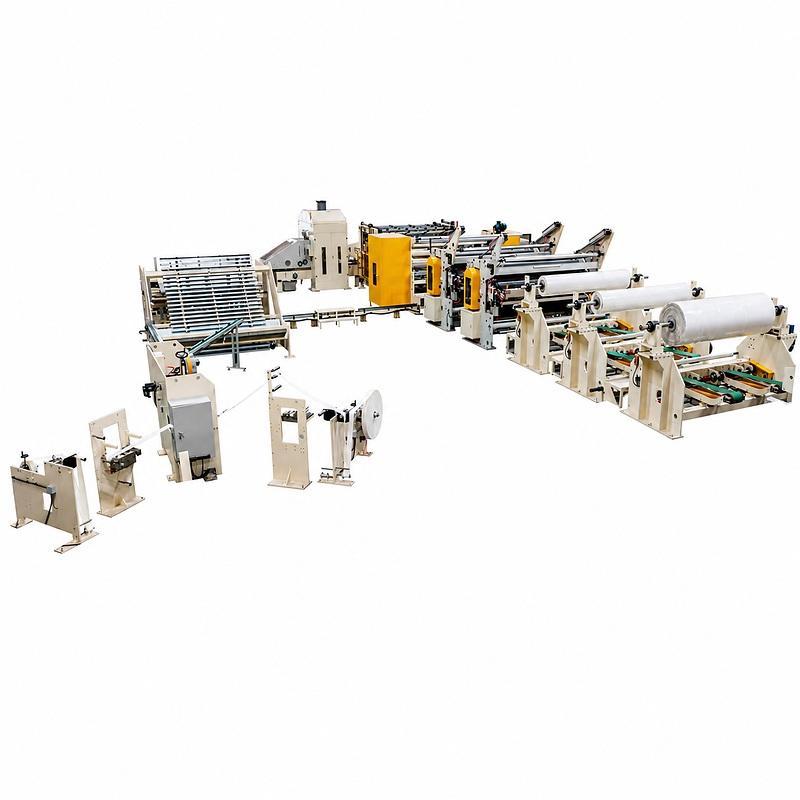

DB-R300 Kitchen Towel Non-Stop Rewinder Line

DB-R300 Toilet & Kitchen Paper Non-Stop Rewinder Line

The DB-R300 is a high-speed rewinding line built for continuous production of toilet tissue and kitchen towel rolls. It combines non-stop surface winding with flexible core and coreless roll forming, making it a practical fit for tissue manufacturers that need stable output across different finished roll formats.

This line is suited to production environments where uptime, multi-ply processing, and quick format changes matter. The modular build lets you match the line to your product mix rather than adapting your product range to a fixed machine setup.

Key Features

• Non-stop rewinding keeps the line running through roll changes, reducing downtime between logs.
• Core and coreless compatibility gives you the option to switch finished roll types without changing the rewinder.
• Patented vacuum suction system supports firm coreless roll forming, which is important for roll shape and consistent density.
• Independent motor drive keeps web tension and synchronization stable across the line.
• Modular design allows embossing, printing, and lamination units to be added according to your product plan.

Optional Configuration

• Unwind stand: 1–5 layers with independent drive.
• Embossing unit: steel-to-rubber, point-to-point, nested, or DECO embossing.
• Edge embossing unit: steel-to-steel.
• Printing unit: 1–2 color printing.
• Glue lamination system.

Selection Guide

To prepare an accurate quotation or line proposal, please provide the following details:

• Product type and finished roll type.
• Parent roll width, diameter, and paper specifications.
• Required production speed and output capacity.
• Required embossing, printing, and lamination options.
• Required unwind stand layers.
• Factory power supply and production layout requirements.
