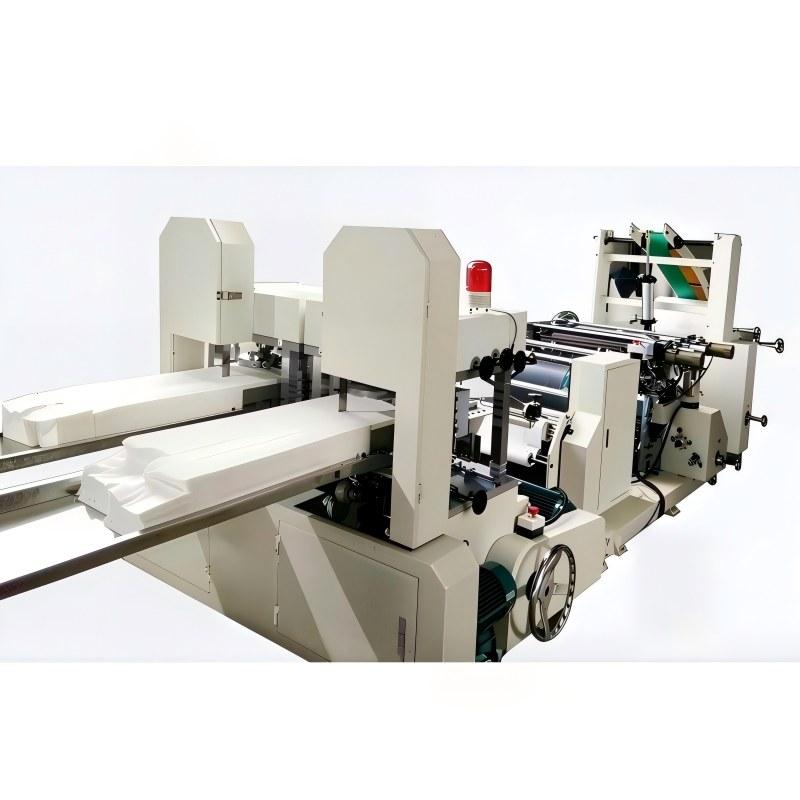

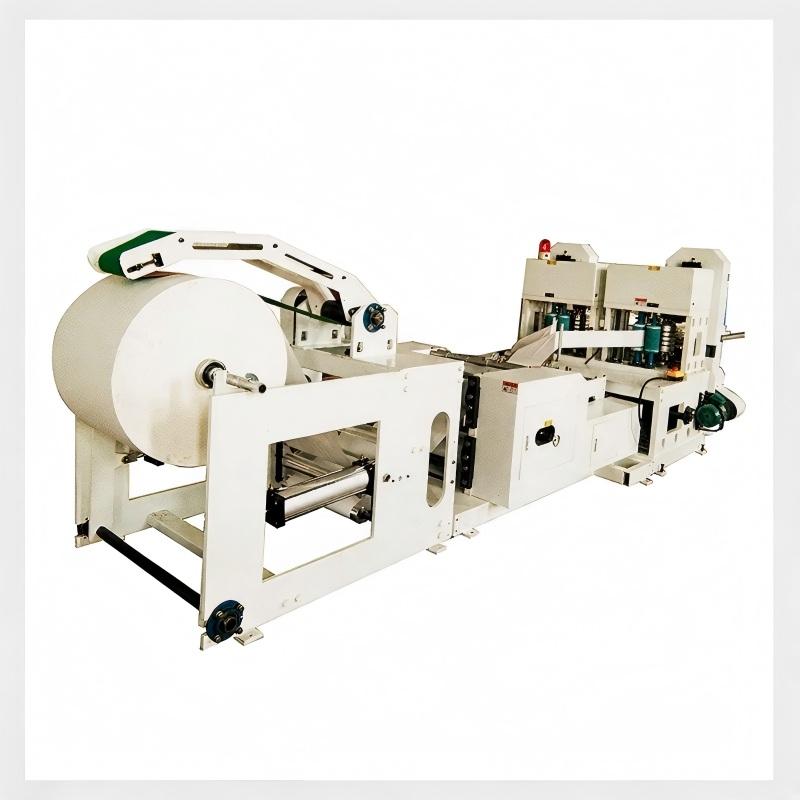

DB-NK-260 Automatic Napkin Tissue Machine for 1/4 Fold Paper Napkins

DB-NK-260 Automatic Napkin Tissue Machine

The DB-NK-260 is a dedicated converting machine engineered for high-efficiency production of 1/4 fold paper napkins. It integrates jumbo roll feeding, embossing, folding, automatic counting, and dual-deck output into a single, reliable system. This configuration is designed to help napkin tissue manufacturers and converters achieve consistent output with flexible process options.

Production Focus and Process Integration

The DB-NK-260 is built around a continuous converting workflow. It starts with parent jumbo rolls, then applies the selected embossing pattern, performs the 1/4 fold, counts the finished napkins automatically, and delivers them through a dual-deck output system. This integrated approach reduces manual handling between process steps and supports a steadier production flow for napkin tissue manufacturers and tissue converters.

Key Features

• Produces 1/4-fold paper napkins from single-ply or double-ply jumbo tissue rolls.
• Production capacity up to 2,000–3,000 sheets/min for high-efficiency paper napkin production.
• Steel-to-steel, steel-to-rubber, and steel-to-wool embossing options for different product requirements.
• Dual-deck output with automatic counting improves production efficiency and product handling.
• PLC control with frequency inverter ensures stable operation and easy production control.

Optional Configuration

The machine can be adapted to match your finished product range and factory layout. Confirmed options include:

• Customized finished napkin sizes.
• Customized folding type: 1/4, 1/6, or 1/8 fold.
• Customized embossing patterns.
• Customized output direction: left/right output or upper/lower output.

Selection Guide

To prepare an accurate quotation and machine configuration, please provide the following information:

• Finished product size and folding type.
• Base paper ply, GSM, and jumbo roll specifications.
• Required embossing pattern.
• Required production speed and output capacity.
• Factory power supply and compressed air requirements.
• Production layout and downstream packing requirements.
